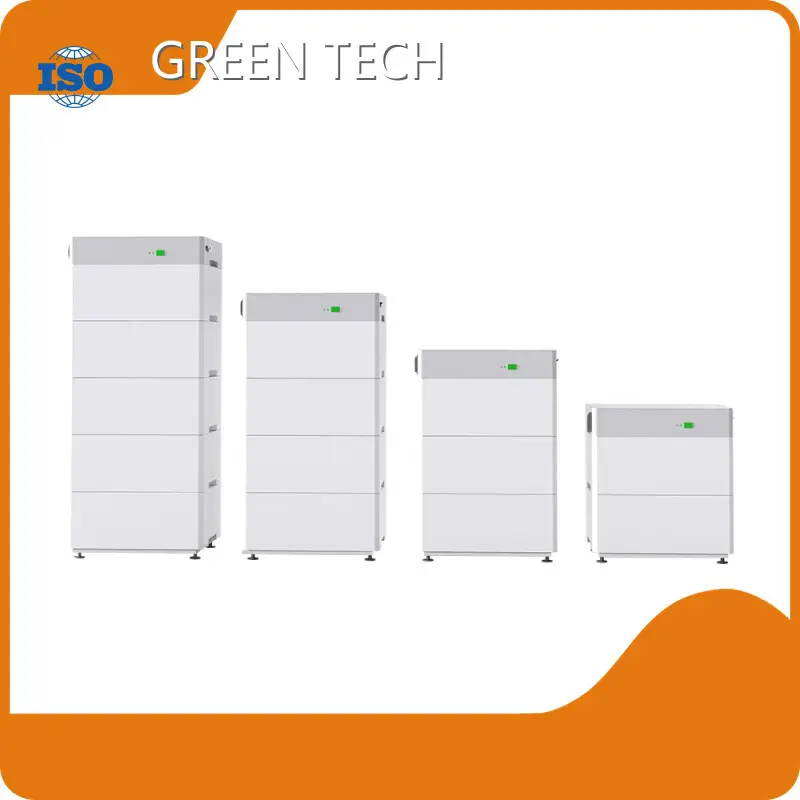

Solar Home Batteries Free Design for Housecleaning 179.2Vd.c 1

Solar Home Batteries Free Design for Housecleaning 179.2Vd.c 2

Solar Home Batteries Free Design for Housecleaning 179.2Vd.c 3

Solar Home Batteries Free Design for Housecleaning 179.2Vd.c 4

Solar Home Batteries Free Design for Housecleaning 179.2Vd.c

Series:

EF Series

Maximum Charge Voltage:

230.4Vd.c

Max. Continuous Discharge Current:

25A

Discharge Cut-off Voltage:

179.2Vd.c

Dimensions(WxDxH):

480x520x160(mm)

Inquiry

more products

Send your inquiry

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-205V10K-S	GTEF-307V15K-S	GTEF-410V20K-S	GTEF-512V25K-S	GTEF-614V30K-S
Energy storage	10kWh	15kWh	20kWh	25kWh	30kWh
Number of series modules	2	3	4	5	6
Nominal Voltage	204.8Vd.c	307.2Vd.c	409.6Vd.c	512Vd.c	614.4Vd.c
Maximum Charge Voltage	230.4Vd.c	345.6Vd.c	460.8Vd.c	576Vd.c	691.2Vd.c
Discharge Cut-off Voltage	179.2Vd.c	268.8Vd.c	358.4Vd.c	448Vd.c	537.6Vd.c
ESR/AC @1KHz 50% SOC	＜100mΩ	＜140mΩ	＜180mΩ	＜220mΩ	＜260mΩ
Max. Continuous Power	5kW	7.5kW	10kW	12.5kW	15kW
Weight	90kg	130kg	170kg	210kg	250kg
Max. Continuous Charge Current	25A	25A	25A	25A	25A
Max. Continuous Discharge Current	25A	25A	25A	25A	25A
Nominal Capacity	52Ah	52Ah	52Ah	52Ah	52Ah
Communication Way	CAN	CAN	CAN	CAN	CAN
Monitoring Data	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.	System voltage, current, temperature, SOC, SOH, cell voltage.
Projected Cycle Life ( 25℃)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)	10000 times(70%EOL)
Recommended Depth of Discharge	≤90%	≤90%	≤90%	≤90%	≤90%
Maximum Depth of Discharge	100%	100%	100%	100%	100%
Environmental Protection	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor	IP 20 Indoor
Shell Material	Metal	Metal	Metal	Metal	Metal
Parallel Connection optional	Not allowed	Not allowed	Not allowed	Not allowed	Not allowed

Company Advantages

· solar home batteries is made using premium materials and comes in different design styles.

· conducts strict quality management system and the quality of this product is assured.

· actual export volume has exceeded the plan.

Company Features

· is equipped with complete equipment and is an excellent enterprise in the industry.

· has core technologies and independent R&D capabilities for solar home batteries production.

· We operate our business in a sustainable manner. We strictly monitor our impacts on the environment by reducing the unnecessary use of natural resources.

Application of the Product

solar home batteries can be used in different fields.

has rich experience in the industry and we are sensitive about customers' needs. Therefore, we can provide comprehensive one-stop solutions based on customers' actual situations.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
