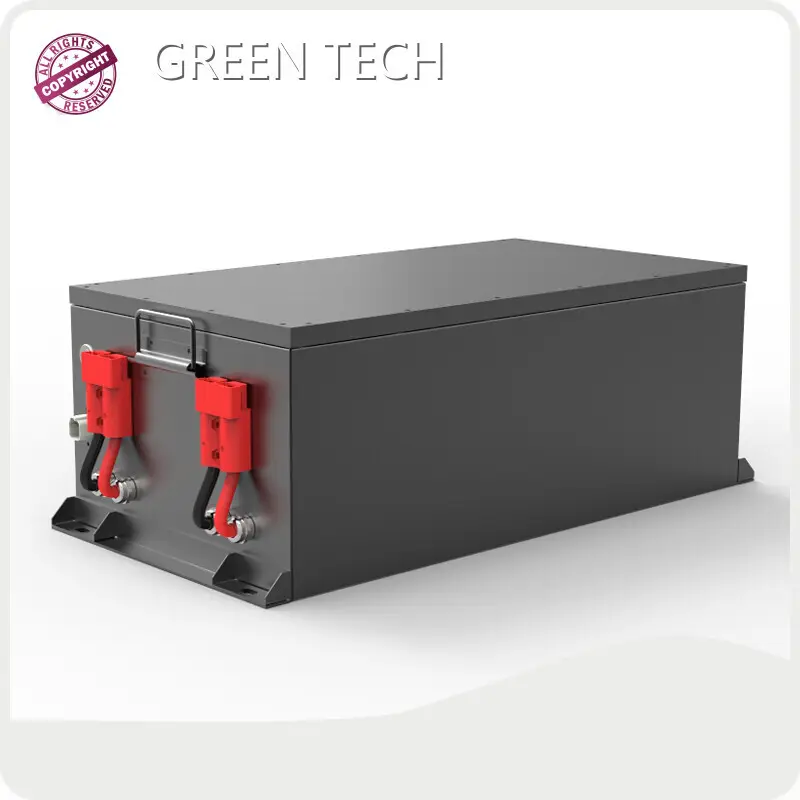

Standard Household Battery Pack 4.5kWh Brand

Product details of the household battery pack

Quick Overview

The production process of household battery pack is supported by advanced technology. Our QC team is incorporated into every stage of the testing process to guarantee its quality. The household battery pack produced by is very popular in the market and is widely used in industry. is very famous for its strict quality assurance.

Product Introduction

Compared with other same kind of products, household battery pack produced by has the following advantages and features.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V4500-G
Energy storage	4.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	400A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	Module voltage,SOC
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

is a diversified company in the industry. The main business is focused on complies with the philosophy of 'credit first, quality first, service first'. Moreover, we are united, cooperative, efficient and practical and we also advocate to make progress through innovation. Our company currently has a number of excellent teams with industry-related knowledge and skilled production workers, who can ensure that our products are of good quality. always provides customers with reasonable and efficient one-stop solutions based on the professional attitude.
Our products are reliable in quality, various in type and affordable in price. Customers in need are welcomed to contact us. We sincerely hope to reach friendly cooperation, common development and mutual benefit with you!
