Product details of the supercapacitor bank

Quick Detail

supercapacitor bank is manufactured using high-quality raw materials. Quality-focused: the product is a result of pursuing high quality. It is strictly inspected under the QC team who has the full right to take charge of the quality of the product. supercapacitor bank of can play a role in various industries. Till now this product has demonstrated a huge market prospect.

Product Introduction

We demand ourselves in the production of supercapacitor bank with stricter standards. Based on this, we ensure that our products have advantages over the general products in the following aspects.

Inverters 6kW-8kW-10kW

	Parameter		GT-EST06KH	GT-EST08KH	GT-EST10KH
Efficiency	Max Efficiency		>98 2%	>98 2%	>98 2%
PV Input	Max. PV input power(W)		7800	10400	13000
	Max. PV input voltage(V)		1000	1000	1000
	MPPT Operation Voltage Range (V)		180-950	180-950	180-950
	Number of MPPT/PV Strings		2/1	2/1	2/1
	Max. PV input current(A)		15/15	15/15	15/15
	Short- circuit current of PV input( A)		18/18	18/18	18/18
Battery	Max Input/Output Voltage(V)		550	550	550
	Operating Voltage Range(V)		180-550	180-550	180-550
	Max Charge/Discharge Current(A)		25/30	25/30	25/30
	Max Input/Output Power(W)		6000/6000	8000/8000	10000/10000
	Battery Type		Li-ion/Lead-acid
AC Input and Output	Rated Power(W)		6000	8000	10000
	Max. Apparent AC Power(VA)		6000	8000	10000
	Nominal AC Voltage(Vac)		380,3L/N/PE	380,3L/N/PE	380,3L/N/PE
	AC Power Frequency ( Hz)		50/60	50/60	50/60
	Max. AC Output Current(A)		10	12	15
	Power Factor Range		~1 (Adjusta	ble from 0.8 leading	to 0.8 lagging)
	OutputTHDi(@Nominal Output)		<3%	<3%	<3%
Genaral Data	Operating Temperature		-25C …+60C(>45C derating)
	Range Topology		Transformerless
	Cooling Method		Natural convection
	Ingress Protection Rating		IP65
	Relative Humidity		0-100%, no condensation
	DC Connection Type		MC/ Amphenol/ Phoenix
	AC Connection Type		Plug-in Connector
	Display		LCD
	Communication With Portal		RS485 (WiFi/GPRS Optinal)
	Communication With BMS		CAN
	Communication With Meter		RS485
Certification	Safety		IEC62109-1/-2
	EMC		EN61000-6-1/-2/-3,IEC61000
	On- Grid standard		AS4777.2:2020 ，NRS097-2-1:2017 ，PN-EN50549-1:2019,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2019-4

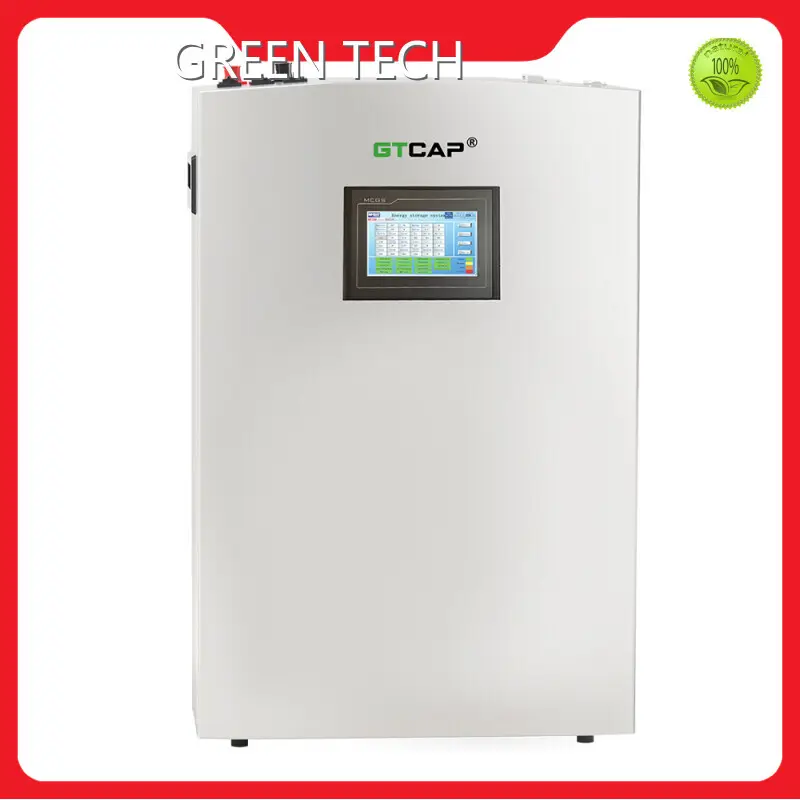

Battery energy storage system Capwall 400V14.4kWh/345V10kWh

Part Number	GTEM-400V14.4K-W	GTEF-345V10K-W
Energy storage	14.4kWh	10.3kWh
Nominal Voltage	400V/DC	345.6V/DC
Maximum Charge Voltage	453V/DC	390V/DC
Discharge Cut-off Voltage	292V/DC	300V/DC
ESR/AC @1KHz 50% SOC	<150mΩ 50A	<100mΩ 15A
Max. Continuous Charge Current	50A	15A
Max. Continuous Discharge Current	50A	30A
Round Trip Efficiency	96%	97.7%
Charge Temperature	0 C~ + 5 5 C	0 C~ + 4 5 C
Discharge Temperature	-20C~+60C	-30C~+60C
Self- discharge Rate	2% per month	2% per month
Recommended Depth of Discharge	≤90%	≤90%
Maximum Depth of Discharge	100%	100%
Cooling Method	Natural	Natural
Mounting Options	Wall/floor	Wall/floor
Shell Material	Metal & ABS plastic	Metal & ABS plastic
Communication	CANbus	CAN,RS485
Monitoring Data	System voltage,current,temperature,SOC,SOH,cycle,cell’s voltage
Compliance Information
Certificate Options	IEC62619:2017,IEC62040, EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017,EN 61000-3-2:2014,  EN 61000-3-3:2013,  RoHS, UN38.3, MSDS

Solar Panel 390-415W

STC*

NOCT*

STC*

Thermal characteristics

Module type			YLxxxDF54e/2(xxx=Pmax)
Power output	Pmax	W	390	395	400	405	410	415
Power output tolerances	△Pmax	W				0/+5
Module efficiency	ηm	%	19.97	20.23	20.48	20.74	21.00	21.25
Voltage at Pmax	Vmpp	V	30.27	30.42	30.56	30.71	30.86	31.00
Current at Pmax	Impp	A	12.89	12.99	13.09	13.19	13.29	13.39
Open-circuit voltage	Vac	V	36.80	36.90	37.00	37.10	37.20	37.30
Short-circuit voltage	Isc	A	13.68	13.77	13.86	13.95	14.04	14.13

*STC:1000W.m-2 irradiance,25℃ cell temperature,AM 1.5 spectrum according to EN 608904-3

Power output	ηm	%	296.85	300.63	304.34	308.17	312.03	315.80
Voltage at Pmax	Vmpp	V	28.87	29.01	29.01	29.14	29.43	29.56
Current at Pmax	Impp	A	10.28	10.36	10.44	10.52	10.60	10.68
Open- circuit voltage	Voc	V	34.98	35.08	35.17	35.27	35.36	35.46
Short- circuit voltage	Isc	A	11.02	11.09	11.17	11.24	11.31	11.38

*NOCT:open-circuit module operation temperature at 800W.m-2 irradiance,20℃ ambient temperature,1m*s-1 wind speed.

Power output	Pmax	%	426.86	432.33	437.80	443.27	448.75	454.22
Voltage at Pmax	Vmpp	V	30.27	30.42	30.56	30.71	30.86	31.00
Current at Pmax	Impp	A	14.10	14.21	14.33	14.43	14.54	14.65
Open- circuit voltage	Voc	V	36.80	36.90	37.00	37.10	37.20	37.30
Short- circuit voltage	Isc	A	14.97	15.07	15.17	15.27	15.37	15.47

*Bifaciality coefficient is 70% ±5%，rear irradiance is 135W.m-2

Nominal operating cell temperature	NOCT	C	39±2
Temperature coefficient of Pmax	γ	% / C	-0.35
Temperature coefficient of Voc	β	% / C	-0.28 0.05

*Bifaciality coefficient is 70% ±5%，rear irradiance is 135W.m-2

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485
