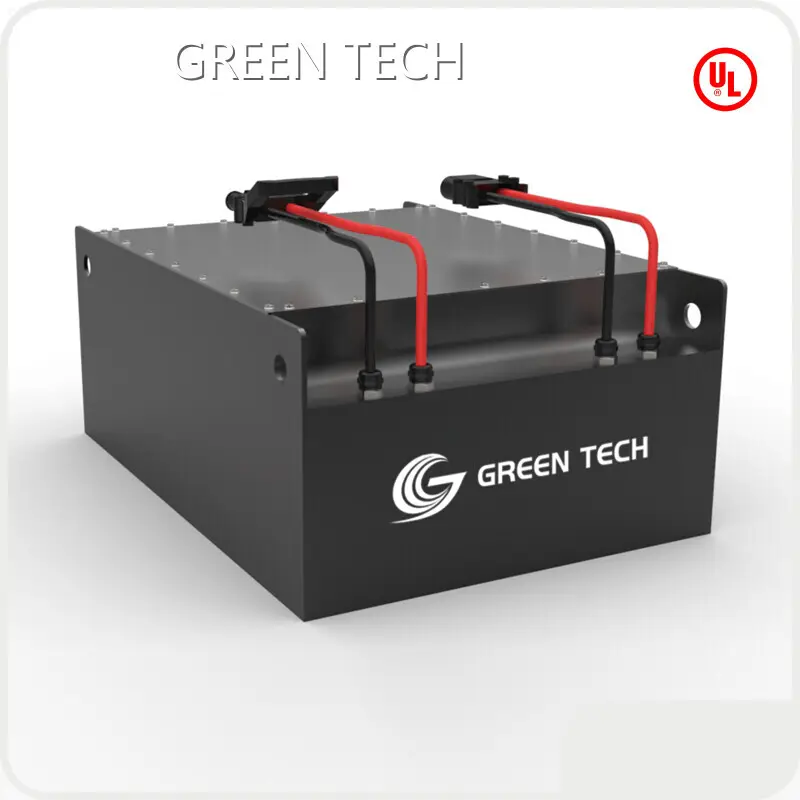

Supercapacitor Bank Customized for Sea Water

Part Number:
GTEM-24V5000-F
Maximum Charge Voltage:
29Vdc
Max. Continuous Discharge Current:
250A
Max. Continuous Charge Current:
250A
Discharge Cut-off Voltage:
20Vdc
Inquiry

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-24V5000-F

Energy storage

5.0kWh

Nominal Voltage

24Vdc

Maximum Charge Voltage

29Vdc

Discharge Cut-off Voltage

20Vdc

ESR/AC @1KHz 50% SOC

<10mΩ

Max. Continuous Charge Current

250A

Max. Continuous Discharge Current

250A

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Charge Temperature

0℃~+55℃

Discharge Temperature

-20℃~+60℃

Cooling Method

Natural

Shell Material

Metal & ABS plastic

Parallel Connection

Recommend within 10sets

Monitoring Data

SOC,voltage, module

Weight

190kg

Dimensions(WxDxH)

645x565x245(mm)

Mount Options

Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)

Download


Company Advantages

· supercapacitor bank has a design that incorporates functionality and aesthetics.

· The product is of premium quality as we have done careful inspection and documentation before it comes into the market.

· With many good characteristics, the product has achieved wide market application.


Company Features

· Serving as an outstanding supercapacitor bank manufacturer, is deeply trusted by customers.

· Our company has attracted national attention. We have received multiple awards, such as Outstanding Supplier of the Year and Business Excellence Award. These honors affirm our dedication.

· Putting integrity first plays an important role in the development of Contact!


Application of the Product

supercapacitor bank of is widely used and has a wide range of applications.

While providing quality products, is dedicated to providing personalized solutions for customers according to their needs and actual situations.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
