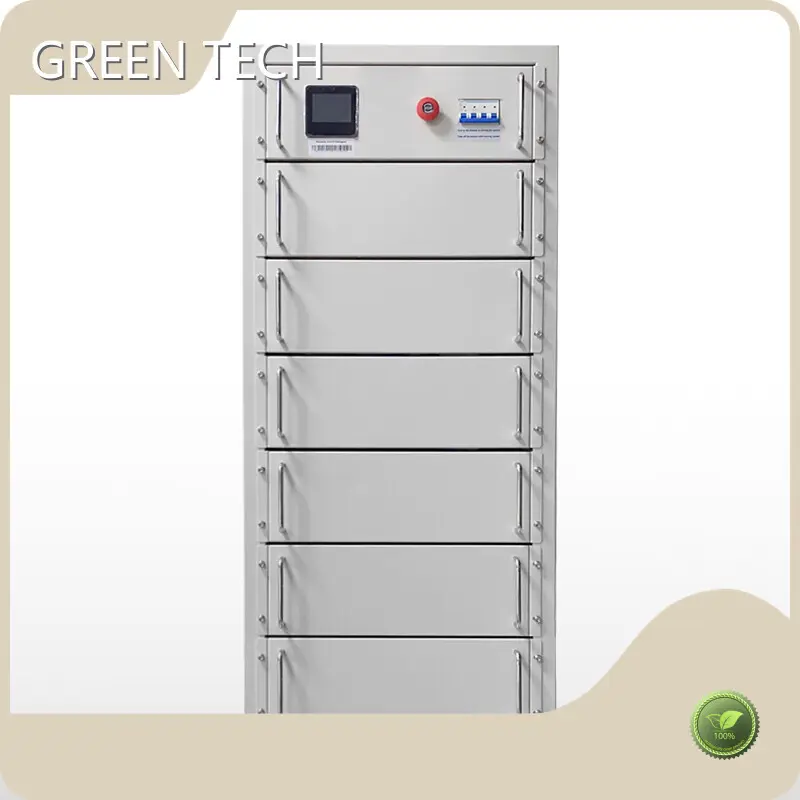

Supercapacitor Bank with Custom Services for Swimming Pool 702Vdc

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-700V25k-R
Energy storage	25.3kWh
Nominal Voltage	702Vdc
Maximum Charge Voltage	83.16Vdc
Discharge Cut-off Voltage	554.4Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	100A
Discharge rate	2.77C
Max. Continuous Output Power	70kW
Charge Temperature*1	0℃~+55℃
Discharge Temperature*2	-30℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Natural cooling
Shell Material	Metal

Weight	420kg
Dimensions(WxDxH)	560x732x1600(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· There are different types of supercapacitor bank for our customer's choice.

· Products under the supervision of professionals, through strict quality inspection, to ensure product quality.

· The product is deeply loved by our customers around the world, taking a large market share.

Company Features

· is a manufacturer of supercapacitor bank. Our expertise in this highly specialized area has been recognized worldwide.

· In order to meet the needs of different users, we continuously develop and perfect the product technology and quality.

· is committed to creating a one-stop service for customers. Contact us!

Application of the Product

The supercapacitor bank developed by our company can be applied in different fields.

has rich experience in the industry and we are sensitive about customers' needs. Therefore, we can provide comprehensive one-stop solutions based on customers' actual situations.
