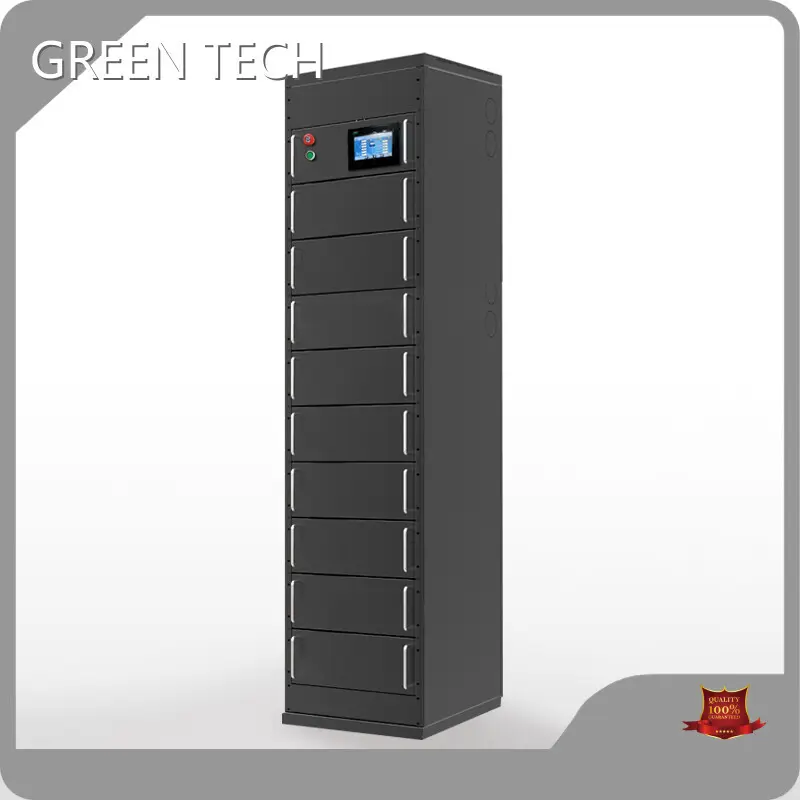

Texture Household Solar Battery Cost Series Bulk Production

Part Number:

GTEG-700V39K-R

Maximum Charge Voltage:

856.8Vdc

Max. Continuous Charge Current:

200A

Discharge Cut-off Voltage:

642.6Vdc

Dimensions(WxDxH):

560x700x1804(mm)

Inquiry

Product details of the household solar battery cost

Quick Overview

household solar battery cost adopts the highest standard for the selection of raw materials. The product has a long-lasting performance and stable functionality. will improve responsiveness to meet the changing needs of different global customers.

Product Information

Compared with products in the same category, household solar battery cost's outstanding advantages are as follows.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEG-700V39K-R
Energy storage	39.4kWh
Nominal Voltage	703.8Vdc
Maximum Charge Voltage	856.8Vdc
Discharge Cut-off Voltage	642.6Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	280A
Max. Continuous Discharge Current	280A
Discharge rate	5C
Max. Continuous Output Power	196kW
*Charge Temperature1**	-20℃~+60℃
*Discharge Temperature2**	-40℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	50,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Liquid cooling ( cycle frequently )
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Certificate

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Introduction

has rich experience in researching and developing, manufacturing and selling household solar battery cost. actively implements the ISO 14001 Environmental Management System. Since the establishment of we have continued to produce original and competitive household solar battery cost. Contact us!
Consulting and order from friends of all walks of life are welcomed!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
