Nominal Voltage:
48Vdc
Max. Continuous Charge Current:
200A
Energy storage:
6.5kWh
Discharge Cut-off Voltage:
37Vdc
Dimensions(WxDxH):
940x400x252mm
Inquiry
Send your inquiry

Product Parameters
General Characteristics
Mechanical Specifications

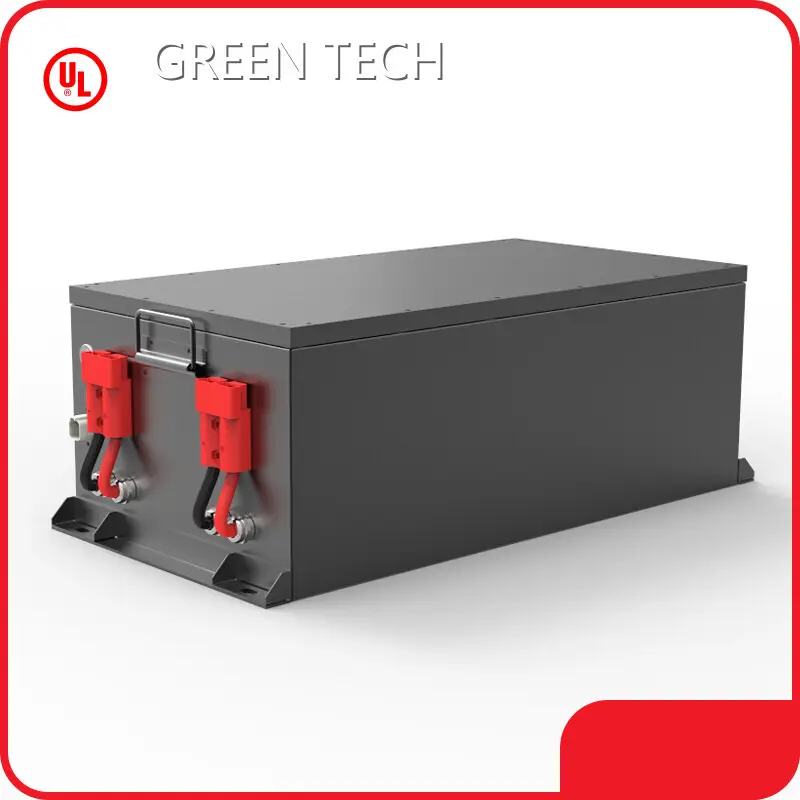

Part Number

GTEM-48V6500-G

Energy storage

6.5kWh

Nominal Voltage

48Vdc

Nominal Capacity

130Ah

Maximum Charge Voltage

58.8Vdc

Discharge Cut-off Voltage

37Vdc

ESR/AC @1KHz 50% SOC

<15mΩ

Max. Continuous Charge Current

200A

Max. Continuous Discharge Current

200A

Absolute Peak Current 3s

300A

Discharge Temperature

-20℃~+60℃

Charge Temperature

0℃~+55℃

Cooling Method

Natural cooling

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Metal & ABS plastic

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,

cell’s voltage

Indicator light display

Capacity %

Environmental Protection

IP65

Storage Conditions

-20℃~+40℃

25% ~ 95%RH

SOC>30%,one full charge needed per two months

Weight

75kg

Dimensions(WxDxH)

940x400x252(mm)

Mount Options

On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)

Download


Company Advantages

· deep cycle marine battery 100ah is specifically designed to meet the needs of customers, featuring innovation and functionality.

· The product has passed many international certificates, its quality can be assured.

· This product has long-term viability in the market and broad application prospects.


Company Features

· markets a number of different deep cycle marine battery 100ah for many years. We are trying hard to be a top leader in this industry in China.

· In this factory, we carry out high-quality mass production with a wide range of manufacturing equipment and a highly qualified team of engineers.

· wants to satisfy our customers whatever in quality or in service. Please contact.


Application of the Product

Our deep cycle marine battery 100ah has a wide range of applications and can be used in a variety of situations and scenarios.

We have a professional team and can provide customers with the most appropriate solutions to help customers achieve their goals quickly and effectively.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
