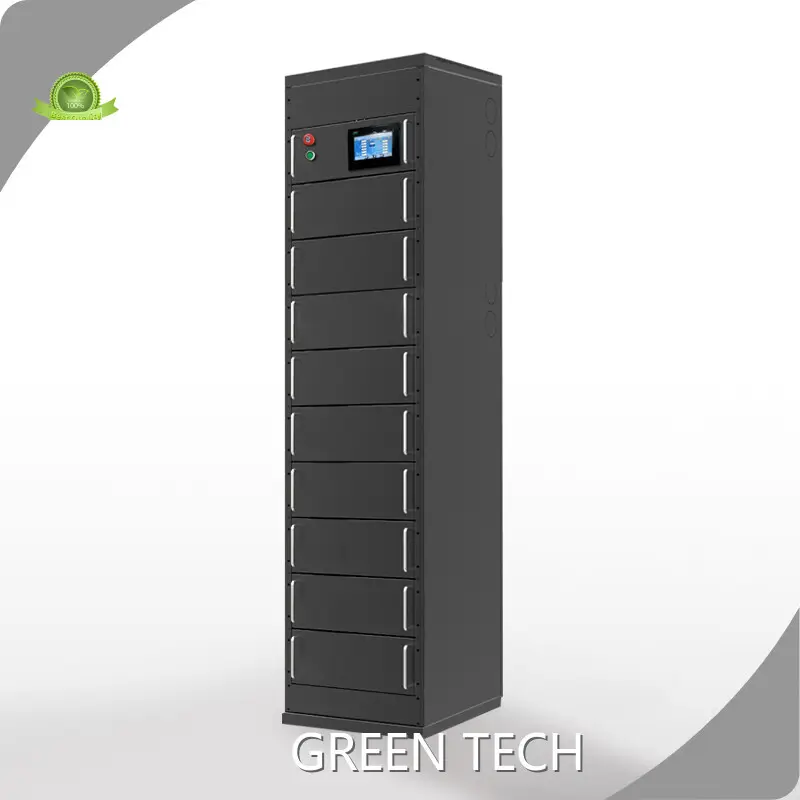

Top Sellingbattery Energy Storage Company

Company Advantages

· battery energy storage from is high-quality and cost-effective.

· We have implemented a rigorous quality control scheme.

· The product is warmly welcomed and widely applied by our global customers thanks to its remarkable advantages and high economic benefits.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEG-700V39K-R
Energy storage	39.4kWh
Nominal Voltage	703.8Vdc
Maximum Charge Voltage	856.8Vdc
Discharge Cut-off Voltage	642.6Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	280A
Max. Continuous Discharge Current	280A
Discharge rate	5C
Max. Continuous Output Power	196kW
Charge Temperature*1	-20℃~+60℃
Discharge Temperature*2	-40℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	50,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Liquid cooling ( cycle frequently )
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Certificate

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Features

· With the spirit of constant innovation, has developed to be a highly advanced company.

· To be a dominant battery energy storage supplier, adopts highly advanced technology during the production.

· Our drive for greater resource efficiency focuses on two key areas; sourcing of renewables and the management of the waste we generate and water we use in our operations.

Enterprise Advantages

With a focus on talents cultivation, we encourage our staff to learn and innovate. In this way, their professional and technical capabilities would be improved. Currently, our company already has a group of highly specialized production personnel and it is beneficial to enhance our core competitiveness.

will deeply understand the needs of users and offer great services to them.

insists on providing quality products and creating value for customers. We are committed to pursuing excellence for products and services, so as to promote the healthy and sustainable development of our company.

was founded in and we have developed the business for years.

products are mainly exported to Europe, America, Asia and Africa and other countries and regions.
