Top Types of Capacitor Bank Manufacture

Product details of the types of capacitor bank

Product Introduction

The different materials are designed by to create a rich variety of types of capacitor bank. The product is of quality and performance that conforms to the industrial and international standards. In time to come, will release new material options for our clients to maintain a competitive advantage in their local market.

Product Parameters

General Characteristics

Mechanical Specifications

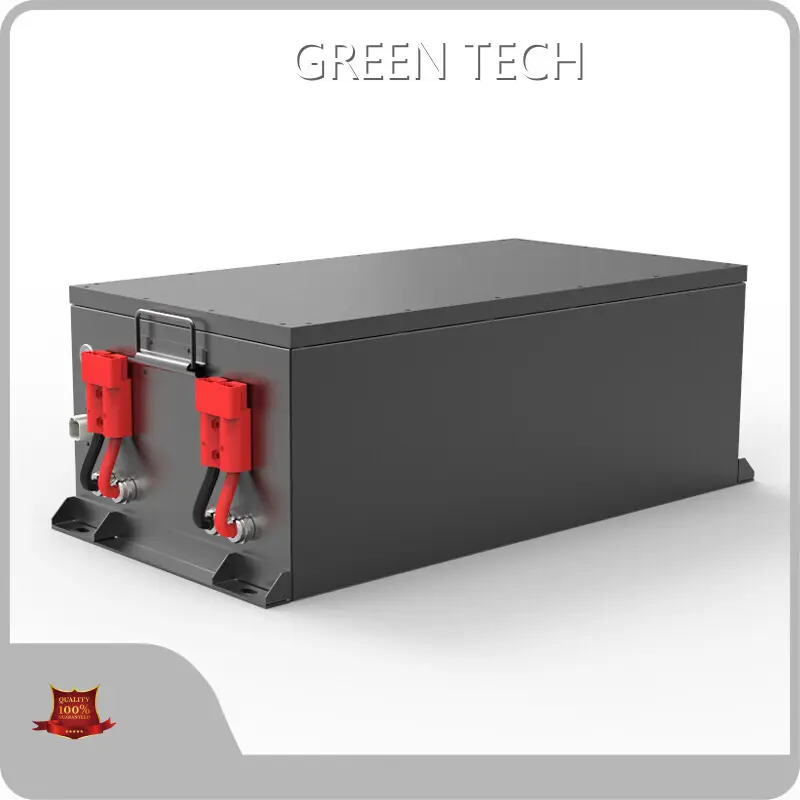

Part Number	GTEM-48V3600-G
Energy storage	3.62kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	37Vdc
ESR/AC @1KHz 50% SOC	<20mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Cut-off Current (charging)	4A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantage

• owns an R&D team and a management team which consists of experienced experts, technicians, and management staff. We have the ability to come up with specific solutions based on the occurred problems during the production.
• With a complete service system, can provide timely, professional and comprehensive after-sales service for consumers.
• Established in our company has built a production and research and development center with advanced technology and complete supporting facilities. Based on that, we are able to provide customers with more high-quality products.
• Our company enjoys great geographic location with different main transportation lines crossing the city. Besides, the unimpeded road condition provides strong guarantee for the successful transportation of products.
insists on producing all kinds of quality electric equipment. If you have any interest, please feel free to contact us at any time!
