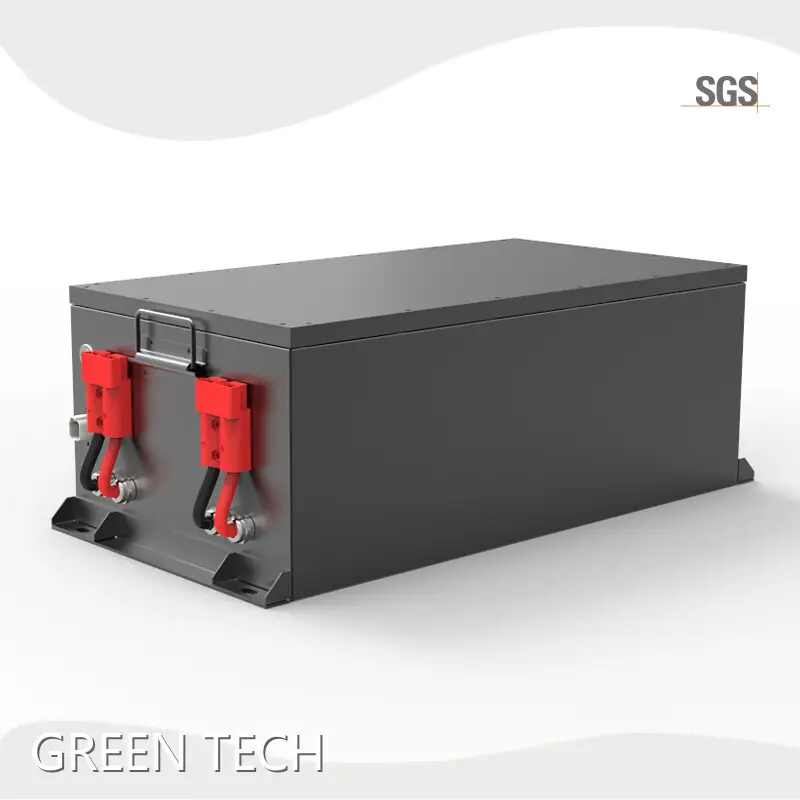

Toppower Storage Systems 720x355x252mm Brand

Nominal Voltage:

48Vdc

Max. Continuous Discharge Current:

200A

Energy storage:

3.62kWh

Discharge Cut-off Voltage:

37Vdc

Dimensions(WxDxH):

720x355x252mm

Inquiry

Company Advantages

· power storage systems is produced with high craftwork.

· This product has long service life and stable performance.

· If customers have any reasonable suggestion for package, will try to cooperate.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V3600-G
Energy storage	3.62kWh
Nominal Voltage	48Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	37Vdc
ESR/AC @1KHz 50% SOC	<20mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Cut-off Current (charging)	4A
Absolute Peak Current 3s	300A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle, cell’s voltage
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Features

· is highly sought after in the power storage systems market.

· The coordinated development of technology development and research will ensure the quality of power storage systems. uses high-tech to produce power storage systems.

· All our efforts on design, safety, intelligence, efficiency, and energy-saving have the only purpose: to satisfy our valued customers and give them the best impression and valuable joy.

Product Comparison

power storage systems's outstanding advantages are as follows.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
