Product details of the types of capacitor bank


Quick Overview

Our ranges of types of capacitor bank are made as per the international standards. The product has a dominant influence in this field and is praised by numerous customers. The product sells well and occupied a large market share at home and abroad.


Product Information

In order to strengthen your understanding of types of capacitor bank, will show you the specific details of types of capacitor bank in the following section.

Hybrid Inverters 3.6KW-8KW

Model

SUN-5K-SG01LP1-US

SUN-6K-SG01LP1-US

SUN-7.6K-SG01LP1-

SUN- 8 K- SG0 1 LP1 - US/EU

Battery Type

Lead-acid or lithium-ion

Battery Voltage Range (V)

40-60V

Max.Charging Current (A)

120 A

13SA

190A

190A

Max. Discharging Current (A)

120 A

13SA

190A

190A

Charging Curve

3 Stages / Equalization

Extemal Temperature Sensor

Optional

Charging Strategy for Li-ion Battery

Self-adapti on to BMS

PV String Input Data

Max. DC Input Power (W)

6500W

7800W

9880W

10400W

PV Input Voltage (V)

370V (100v-500V)

MPPT Range (V)

12SV-425V

Start-up Voltage (V)

150V

PV Input Current (A)

11A+11A

22A+11A

22A+22A

22A+22A

No. of MPPT Trackers

2

No. of Strings Per MPPT Tracker

1+1

2+1

2+2

2+2

AC Output Data

Rated AC Output and UPS Power (W)

5000W

6500W

7600W

8000W

Max. AC Output Power

5S00W

6600W

8360W

8800W

Peak Rower (off grid)

2 times of rated power, 10 S

AC Output Rated Current (A)

20.8A

25A

31.7A/33A

31.4A/35A

Max AC Current (A)

22.9A

27.5A

34.9A/36.3A

36.7A/38.5A

Max.Continuous AC Passthrough (A)

35A

40A

50A

S0A

Output Frequency and Voltage

50 / 60Hz, 120/24Vac(split phase),

2O8Vac(2/3 phase). 230Vac (single phase)



Grid Type

Split phase:2/3phase;Single Phase

Current Harmonic Distortion

THD<3% (Linear back <15%)

Max. Efficiency

97.60%

Grid Regulation

ULI741, IEEE 1547, RULE21,VDE0126, AS4777, NRS2017, G98,G99, IEC61683, IEC62116, IEC61727

Safety Regulation

IEC62109-1, LEC62109-2

EMC

EN61000-6-1. EN610006-3,FCC15class B

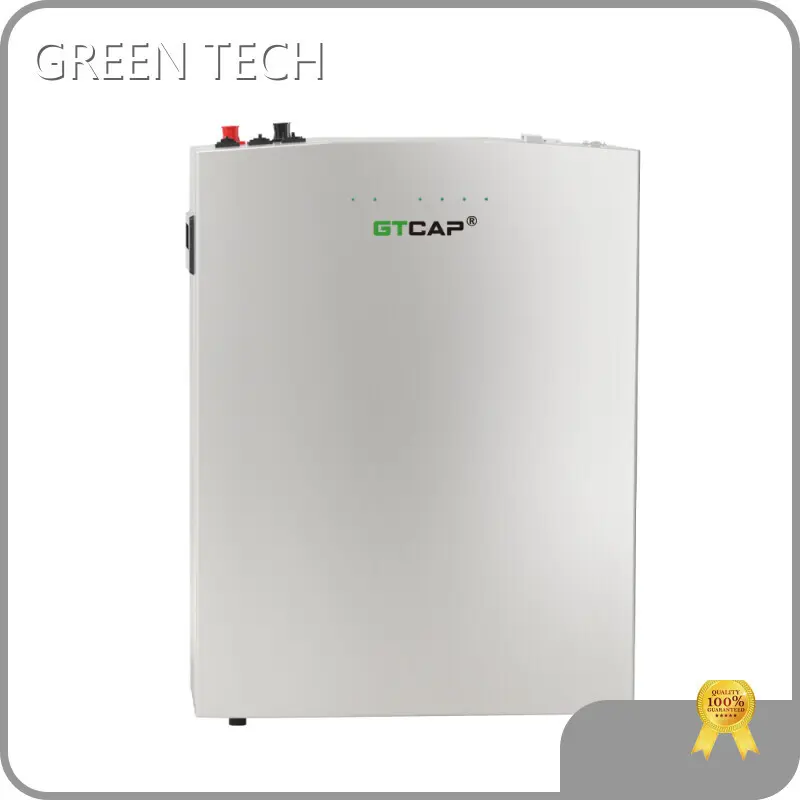

Battery energy storage system Capwall 5.5kWh/10kWh/15kWh

Part Number

GTEM-48V5.5K-W

GTEF-48V10K-W

GTEM-48V15K-W

Energy storage

5.44kWh

10kWh

15kWh

Capacity

105Ah

210Ah

294Ah

Nominal Voltage

51.8V/DC

51.2V/DC

51.8V/DC

Maximum Charge Voltage

58V/DC

57V/DC

58V/DC

Discharge Cut-off Voltage

42V/DC

44V/DC

42V/DC

Internal Configuration

14S5P/EM21

16S7P/EF30

14S14P/EM21

ESR/AC @1KHz 50% SOC

<8mΩ

<9mΩ

<15mΩ

Max. Continuous Charge Current

100A

100A

200A

Max. Continuous Discharge Current

100A

100A

200A

Dimensions

470x510x175(mm)

730x750x138(mm)

700x765x175(mm)

Weight

45kg

117kg

132kg

Projected cycle life(25C)

20000 times

10000 times

20000 times

Round Trip Efficiency*1

97.5%

97.7%

97.5%

Cells Self- discharge Rate

2% per month

Projected life(25C)

15 years

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Cooling Method

Natural

Shell Material

Metal & ABS plastic

Parallel Connection

Up to 16 sets

Compatible Protocol Monitoring Data

CAN, RS485

Monitoring Data

System voltage, current, temperature, SOC, SOH, cycle, cell’ s voltage

Solar Panel 390-415W
STC*
NOCT*
STC*
Thermal characteristics

Module type





YLxxxDF54e/2(xxx=Pmax)

Power output

Pmax

W

390

395

400

405

410

415

Power output tolerances

△Pmax

W

      0/+5

Module efficiency

ηm

%

19.97

20.23

20.48

20.74

21.00

21.25

Voltage at Pmax

Vmpp

V

30.27 30.42 30.56 30.71 30.86 31.00

Current at Pmax

Impp

A

12.89 12.99 13.09 13.19 13.29 13.39

Open-circuit voltage

Vac

V

36.80

36.90

37.00

37.10

37.20

37.30

Short-circuit voltage

Isc

A

13.68

13.77

13.86

13.95

14.04

14.13

*STC:1000W.m-2 irradiance,25℃ cell temperature,AM 1.5 spectrum according to EN 608904-3

Power output

ηm

%

296.85

300.63

304.34

308.17

312.03

315.80

Voltage at Pmax

Vmpp

V

28.87

29.01

29.01

29.14

29.43

29.56

Current at Pmax

Impp

A

10.28

10.36

10.44

10.52

10.60

10.68

Open- circuit voltage

Voc

V

34.98

35.08

35.17

35.27

35.36

35.46

Short- circuit voltage

Isc

A

11.02

11.09

11.17

11.24

11.31

11.38

*NOCT:open-circuit module operation temperature at 800W.m-2 irradiance,20℃ ambient temperature,1m*s-1 wind speed.

Power output

Pmax

%

426.86

432.33

437.80

443.27

448.75

454.22

Voltage at Pmax

Vmpp

V

30.27

30.42

30.56

30.71

30.86

31.00

Current at Pmax

Impp

A

14.10

14.21

14.33

14.43

14.54

14.65

Open- circuit voltage

Voc

V

36.80

36.90

37.00

37.10

37.20

37.30

Short- circuit voltage

Isc

A

14.97

15.07

15.17

15.27

15.37

15.47

*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2

Nominal operating cell temperature

NOCT

C

39±2

Temperature coefficient of Pmax

γ

% / C

-0.35

Temperature coefficient of Voc

β

% / C

-0.28 0.05

*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485
