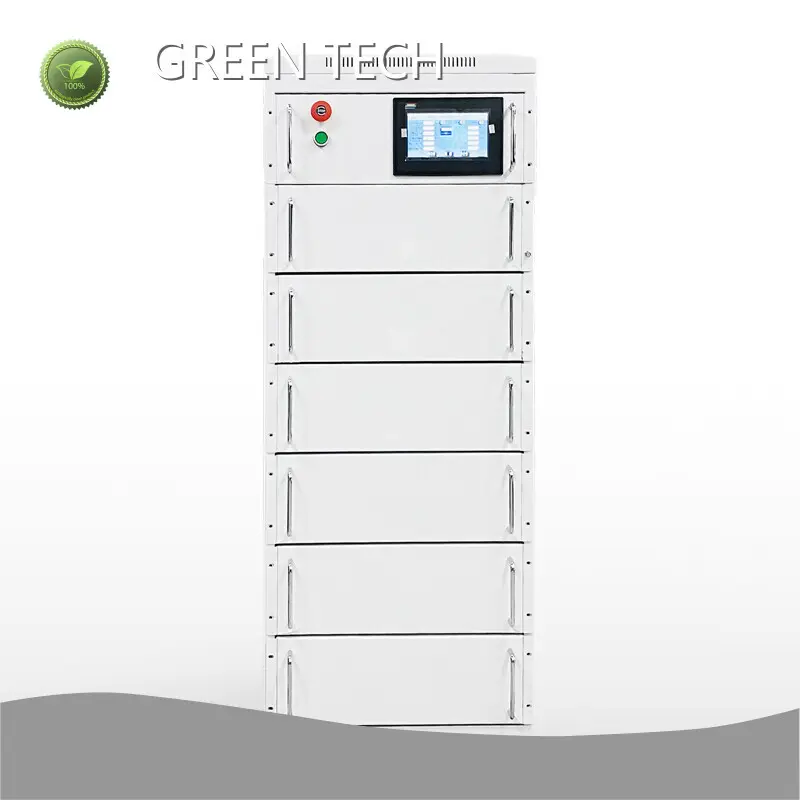

Product details of the battery energy storage system
Product Description
battery energy storage system is carefully examined at every level of production. also adopts eco-friendly materials to guarantee the zero pollution of battery energy storage system. After-sales support is available from to maximize customer productivity.
Part Number |
GTEM-400V50K-R |
Energy storage |
50.3kWh |
Nominal Voltage |
400Vdc |
Maximum Charge Voltage |
448.2Vdc |
Discharge Cut-off Voltage |
324Vdc |
ESR/AC @1KHz 50% SOC |
<100mΩ |
Max. Continuous Charge Current |
120A |
Max. Continuous Discharge Current |
120A |
Round Trip Efficiency*1 |
97.5% |
Projected Cycle Life ( 25℃) |
10,000 times (70%EOL) |
Recommended Depth of Discharge |
≤90% |
Maximum Depth of Discharge |
100% |
Cooling Method |
Natural |
Shell Material |
Metal & ABS plastic |
Monitoring Data |
System voltage,current, temperature, SOC,SOH,cycle,cell’s voltage |
Parallel connection optional |
Cannot be connected in parallel (If parallel connection is required, please inform in advance ) |
Weight |
500kg |
Dimensions(WxDxH) |
611x735x1487(mm) |
Mount Options |
On floor |
