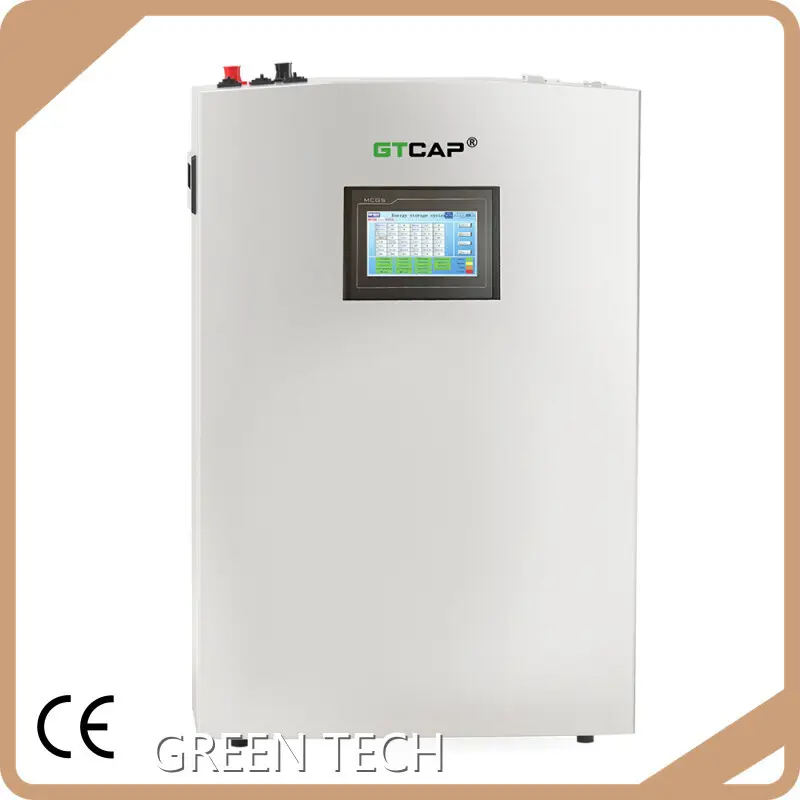

Product details of the graphene battery price
Product Overview
All graphene battery price are produced by high quality material. The performance of this product is superior to that of other similar products on the market. The product can withstand market tests and customer considerations.
Product Introduction
The specific details of graphene battery price are presented below.
|
Parameter |
GT-EST06KH |
GT-EST08KH |
GT-EST10KH |
|
Efficiency |
Max Efficiency |
>98 2% |
>98 2% |
>98 2% |
|
PV Input
|
Max. PV input power(W) |
7800 |
10400 |
13000 |
|
Max. PV input voltage(V) |
1000 |
1000 |
1000 |
||
MPPT Operation Voltage Range (V) |
180-950 |
180-950 |
180-950 |
||
Number of MPPT/PV Strings |
2/1 |
2/1 |
2/1 |
||
Max. PV input current(A) |
15/15 |
15/15 |
15/15 |
||
Short- circuit current of PV input( A) |
18/18 |
18/18 |
18/18 |
||
Battery
|
Max Input/Output Voltage(V) |
550 |
550 |
550 |
|
Operating Voltage Range(V) |
180-550 |
180-550 |
180-550 |
||
Max Charge/Discharge Current(A) |
25/30 |
25/30 |
25/30 |
||
Max Input/Output Power(W) |
6000/6000 |
8000/8000 |
10000/10000 |
||
Battery Type |
Li-ion/Lead-acid |
||||
AC Input and Output
|
Rated Power(W) |
6000 |
8000 |
10000 |
|
Max. Apparent AC Power(VA) |
6000 |
8000 |
10000 |
||
Nominal AC Voltage(Vac) |
380,3L/N/PE |
380,3L/N/PE |
380,3L/N/PE |
||
AC Power Frequency ( Hz) |
50/60 |
50/60 |
50/60 |
||
Max. AC Output Current(A) |
10 |
12 |
15 |
||
Power Factor Range |
~1 (Adjusta |
ble from 0.8 leading |
to 0.8 lagging) |
||
OutputTHDi(@Nominal Output) |
<3% |
<3% |
<3% |
||
Genaral Data |
Operating Temperature |
-25C …+60C(>45C derating) |
|||
Range Topology |
Transformerless |
||||
Cooling Method |
Natural convection |
||||
Ingress Protection Rating |
IP65 |
||||
Relative Humidity |
0-100%, no condensation |
||||
DC Connection Type |
MC/ Amphenol/ Phoenix |
||||
AC Connection Type |
Plug-in Connector |
||||
Display |
LCD |
||||
Communication With Portal |
RS485 (WiFi/GPRS Optinal) |
||||
Communication With BMS |
CAN |
||||
Communication With Meter |
RS485 |
||||
Certification |
Safety |
IEC62109-1/-2 |
|||
EMC |
EN61000-6-1/-2/-3,IEC61000 |
||||
On- Grid standard |
AS4777.2:2020 ,NRS097-2-1:2017 ,PN-EN50549-1:2019,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2019-4 |
Part Number |
GTEM-400V14.4K-W |
GTEF-345V10K-W |
Energy storage |
14.4kWh |
10.3kWh |
Nominal Voltage |
400V/DC |
345.6V/DC |
Maximum Charge Voltage |
453V/DC |
390V/DC |
Discharge Cut-off Voltage |
292V/DC |
300V/DC |
ESR/AC @1KHz 50% SOC |
<150mΩ 50A |
<100mΩ 15A |
Max. Continuous Charge Current |
50A |
15A |
Max. Continuous Discharge Current |
50A |
30A |
Round Trip Efficiency |
96% |
97.7% |
Charge Temperature |
0 C~ + 5 5 C |
0 C~ + 4 5 C |
Discharge Temperature |
-20C~+60C |
-30C~+60C |
Self- discharge Rate |
2% per month |
2% per month |
Recommended Depth of Discharge |
≤90% |
≤90% |
Maximum Depth of Discharge |
100% |
100% |
Cooling Method |
Natural |
Natural |
Mounting Options |
Wall/floor |
Wall/floor |
Shell Material |
Metal & ABS plastic |
Metal & ABS plastic |
Communication |
CANbus |
CAN,RS485 |
Monitoring Data |
System voltage,current,temperature,SOC,SOH,cycle,cell’s voltage |
|
Compliance Information |
|
|
Certificate Options |
IEC62619:2017,IEC62040, EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017,EN 61000-3-2:2014, EN 61000-3-3:2013, RoHS, UN38.3, MSDS |
Module type |
|
|
YLxxxDF54e/2(xxx=Pmax) |
|||||
Power output |
Pmax |
W |
390 |
395 |
400 |
405 |
410 |
415 |
Power output tolerances |
△Pmax |
W |
0/+5 | |||||
Module efficiency |
ηm |
% |
19.97 |
20.23 |
20.48 |
20.74 |
21.00 |
21.25 |
Voltage at Pmax |
Vmpp |
V |
30.27 | 30.42 | 30.56 | 30.71 | 30.86 | 31.00 |
Current at Pmax |
Impp |
A |
12.89 | 12.99 | 13.09 | 13.19 | 13.29 | 13.39 |
Open-circuit voltage |
Vac |
V |
36.80 |
36.90 |
37.00 |
37.10 |
37.20 |
37.30 |
Short-circuit voltage |
Isc |
A |
13.68 |
13.77 |
13.86 |
13.95 |
14.04 |
14.13 |
*STC:1000W.m-2 irradiance,25℃ cell temperature,AM 1.5 spectrum according to EN 608904-3
Power output |
ηm |
% |
296.85 |
300.63 |
304.34 |
308.17 |
312.03 |
315.80 |
Voltage at Pmax |
Vmpp |
V |
28.87 |
29.01 |
29.01 |
29.14 |
29.43 |
29.56 |
Current at Pmax |
Impp |
A |
10.28 |
10.36 |
10.44 |
10.52 |
10.60 |
10.68 |
Open- circuit voltage |
Voc |
V |
34.98 |
35.08 |
35.17 |
35.27 |
35.36 |
35.46 |
Short- circuit voltage |
Isc |
A |
11.02 |
11.09 |
11.17 |
11.24 |
11.31 |
11.38 |
*NOCT:open-circuit module operation temperature at 800W.m-2 irradiance,20℃ ambient temperature,1m*s-1 wind speed.
Power output |
Pmax |
% |
426.86 |
432.33 |
437.80 |
443.27 |
448.75 |
454.22 |
Voltage at Pmax |
Vmpp |
V |
30.27 |
30.42 |
30.56 |
30.71 |
30.86 |
31.00 |
Current at Pmax |
Impp |
A |
14.10 |
14.21 |
14.33 |
14.43 |
14.54 |
14.65 |
Open- circuit voltage |
Voc |
V |
36.80 |
36.90 |
37.00 |
37.10 |
37.20 |
37.30 |
Short- circuit voltage |
Isc |
A |
14.97 |
15.07 |
15.17 |
15.27 |
15.37 |
15.47 |
*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2
Nominal operating cell temperature |
NOCT |
C |
39±2 |
Temperature coefficient of Pmax |
γ |
% / C |
-0.35 |
Temperature coefficient of Voc |
β |
% / C |
-0.28 0.05 |
*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2
Compatible Protocol: CAN, RS485
Company Information
has many years of experience in the development and production of graphene battery price. We have become an expert in this industry. The factory enjoys a geographical advantage. It is near to a broad range of high-quality raw materials suppliers, which benefits us in sourcing raw materials at a relatively low price yet high quality. is committed to offering the most professional graphene battery price. Contact!
We are able to provide you with massive industrial information. If you want to know more about it, feel free to contact us.
