power storage solutions is produced to meet the quality standards as per the customer demands. According to the acquirement of customers, our technicians have successfully improved power storage solutions. creates high-quality and cost-effective power storage solutions products.

Product Parameters

General Characteristics

Mechanical Specifications

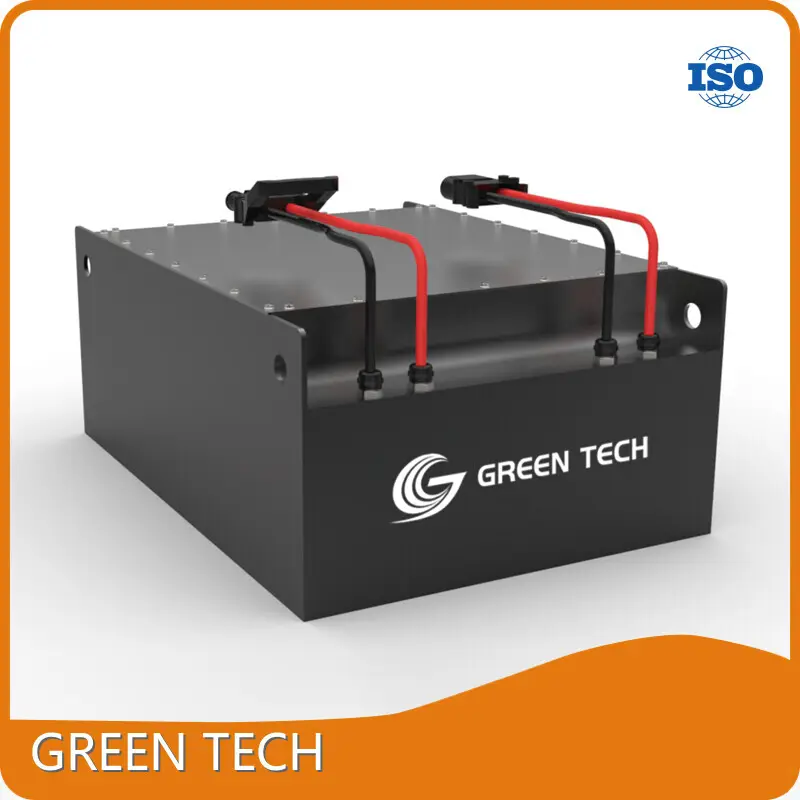

Part Number	GTEM-24V5000-F
Energy storage	5.0kWh
Nominal Voltage	24Vdc
Maximum Charge Voltage	29Vdc
Discharge Cut-off Voltage	20Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	250A
Max. Continuous Discharge Current	250A
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Charge Temperature	0℃~+55℃
Discharge Temperature	-20℃~+60℃
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Parallel Connection	Recommend within 10sets
Monitoring Data	SOC,voltage, module

Weight	190kg
Dimensions(WxDxH)	645x565x245(mm)
Mount Options	Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantage

• Our company has established a professional talent team, so as to provide continuous driving force for our sustainable development. All our talents are industry elites from various fields in production and R&D, brand operation, sales promotion, and so on.
• Guided by consumers, we seek innovative services from the details, meet consumers' pursuit of quality service, and do our best to provide quality and caring services for the public.
• The superior geographical location and traffic convenience lay a solid foundation for to develop sustainably in the following days.
• Our products are sold well in many provinces, cities and autonomous regions in China. Moreover, we operate export business in Southeast Asia, the Middle East, Africa and other countries and regions.
has surprises for you. Contact us for more information.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
