Worldwide Graphene Battery Ev Manufacture 1
Worldwide Graphene Battery Ev Manufacture 1

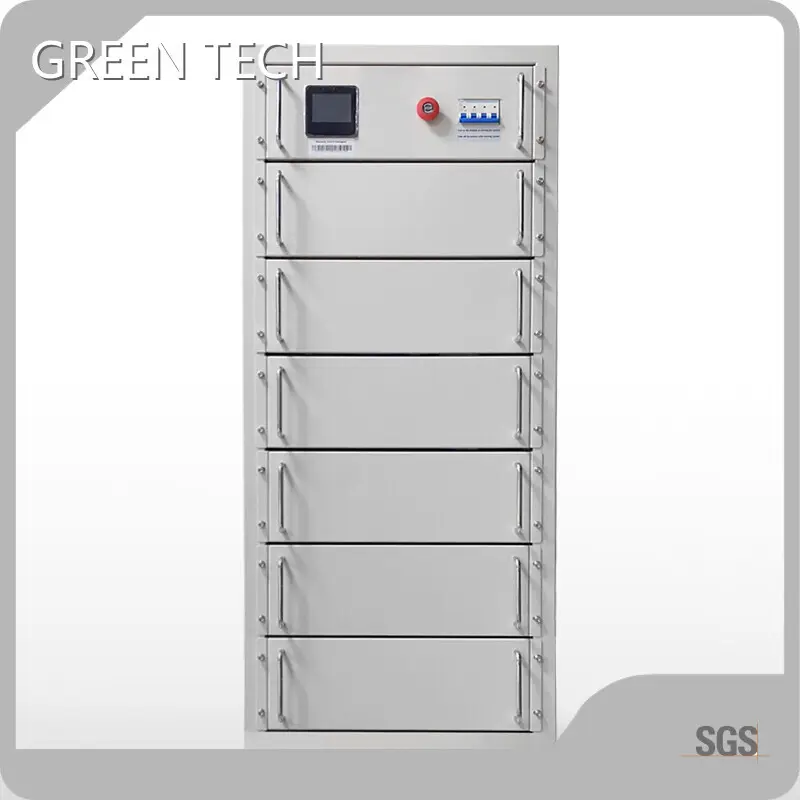

Worldwide Graphene Battery Ev Manufacture

Weight:
412kg
Nominal Voltage:
702Vdc
Maximum Charge Voltage:
831.6Vdc
Max. Continuous Charge Current:
50A
Discharge Cut-off Voltage:
554.4Vdc
Inquiry
Send your inquiry

Product details of the graphene battery ev


Product Description

graphene battery ev from explores the boundary between art and design. The quality of the product is totally assured by the adoption of the strict quality management system. Detailed operation procedure for graphene battery ev will be provided in the form of video.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-700V25k-R

Energy storage

25.3kWh

Nominal Voltage

702Vdc

Maximum Charge Voltage

83.16Vdc

Discharge Cut-off Voltage

554.4Vdc

ESR/AC @1KHz 50% SOC

<100mΩ

Max. Continuous Charge Current

50A

Max. Continuous Discharge Current

100A

Discharge rate

2.77C

Max. Continuous Output Power

70kW

Charge Temperature*1

0℃~+55℃

Discharge Temperature*2

-30℃~+60℃

Operating Humidity

0~90% RH Non-condensing

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤ 90%

Maximum Depth of Discharge

100%

Monitoring Data

System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage

Terminal

Large power energy storage terminals

Environmental Protection

Indoor

Cooling Method

Natural cooling

Shell Material

Metal

Weight

420kg

Dimensions(WxDxH)

560x732x1600(mm)

Mount Options

On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)

Download


Company Feature

• are only sold well throughout the country, but also exported to Europe, America, Southeast Asia, the Middle East, and other countries and regions. And the market share continues to grow.
• actively adopts customer suggestions and continuously improves the service system.
• location enjoys traffic convenience with multiple traffic lines passing through. This is conducive to the outward transportation and is the guarantee of timely supply of products.
• Our company has established an elite team of high quality, high education and professional ability. They are always ready to develop new competitive products according to market demand.
Contact to order now, then you can enjoy the discounts!

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
