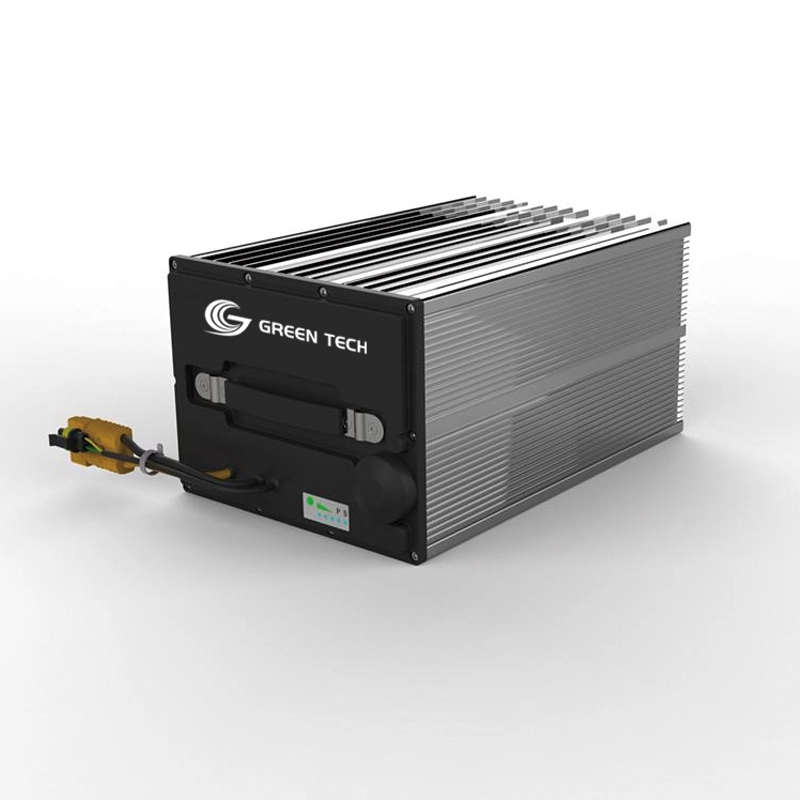

GTEM-48V1248Wh Motorcycle Battery

Motorcycle Battery 48V 1248Wh

GTEM-48V1248-M

这里可以自定义设置
GTEM-48V1248Wh Motorcycle Battery
Graphene Super Capacitor Motorcycle Battery
Highest energy transfer efficiency, fast rechargeable, safe and reliable graphene super capacitor, especially developed for electric motorcycle.
B站不支持收货地址
B站不支持库存规格
Part Number
GTEM-48V1248-M
Series
EM Series
Nominal Voltage
48Vdc
Maximum Charge Voltage
58.8Vdc
Discharge Cut-off Voltage
42Vdc
Max. Continuous Charge Current
80A
Max. Continuous Discharge Current
80A
Energy storage
1248Wh
Weight
15.5kg
Dimensions(WxDxH)
230x180x300mm
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

PRODUCT FEATURES

  • Graphene supercapacitor cells

  • Long cycle life time

DoD up to 100%

  • Safest technology

Highest energy transfer efficiency

  • High discharge current

  • Low self-discharge

  • Low maintenance

Environment friendly

GENERAL CHARACTERISTICS

Part Number

GTEM-48V1248-M

Energy storage

1248Wh

Nominal Voltage

48Vdc

Maximum Charge Voltage

58.8Vdc

Discharge Cut-off Voltage

42Vdc

ESR/AC @1KHz 50% SOC

<12mΩ

Max. Continuous Charge Current

80A

Max. Continuous Discharge Current

80A

Cut-off current (charging)

4A

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Metal & ABS plastic

Monitoring Data

SOC,voltage,current, temperature

Series Connection

Not allowed

Parallel Connection

Recommend within 10sets

Series-Parallel Connection

Not allowed

MECHANICAL SPECIFICATIONS

Weight

15.5kg

Dimensions(WxDxH)

230x180x300(mm)

Mount Options

On floor




PRODUCT APPLICATIONS

Electric Motorcycle

Golf carts

  • Forklifts

  • Electric Rickshaws

Electric ATV

AGV

PRODUCT DIMENSIONS

(Unit: mm)
