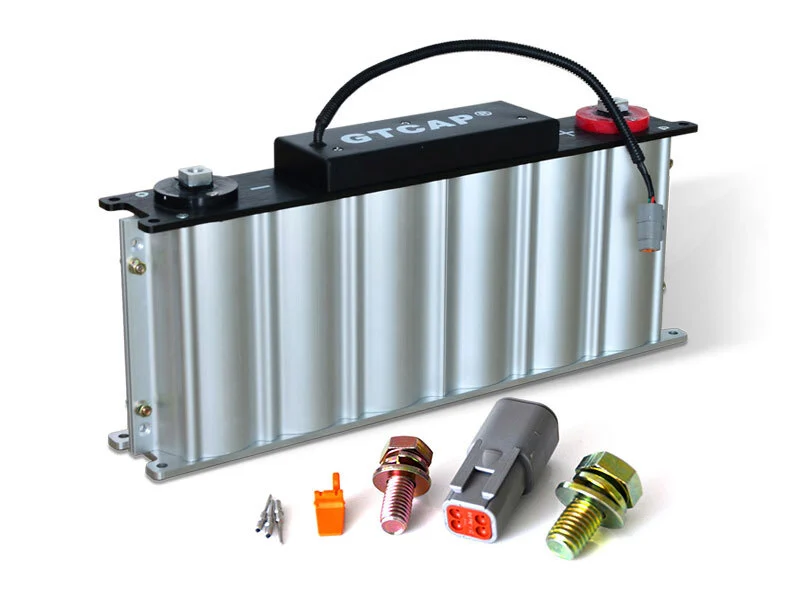

SM 16V 500F-EDLC Ultra Capacitor Module

Highest power performance, low ESR and long cycle life ultra capacitor module.Especially designed for automotive, industrial machine, telecommunications, railway transportation and uninterruptible power supplies(UPS).
Product Features
● Graphene supercapacitor cells
● Long cycle life time
● DoD up to 100%
● Safest technology
● Highest energy transfer efficiency
● High discharge current
● Low self-discharge
● Low maintenance
● Environment friendly

    oops...!

    no product data.

    Go to homepage
    Product Parameters
    General Characteristics
    Mechanical Specifications

    Part Number

    GTSM-16V-500FUS

    Nominal capacitance

    500 F

    Capacitance tolerance

    +20% / -0%

    Rated voltage

    16V

    Maximum absolute voltage

    17V

    Maximum series voltage

    750V

    ESR, DC

    1.8mΩ

    Maximum continuous current (ΔT=40℃)

    100 A

    Maximum peak current, 1 sec.

    2,275 A

    Maximum leakage current (after 72hrs @ 25℃)

    5.2 mA

    Operating temperature range(Cell case temperature)

    -40℃ to +65℃

    Storage temperature range(Storage uncharged)

    -40℃ to +70℃

    Power terminals

    M8/M10

    Recommended torque - terminal

    20/30 Nm

    Vibration specification

    GB-T 11287-2000

    Shock specification

    GBT 14537-1993

    Environmental protection

    IP65

    Weight

    5.7 kg

    Internal temperature sensor

    NTC Thermistor

    Cell voltage monitoring

    Overvoltage Alarm

    Usable power density (Pd)

    3,590 W/kg

    Certificate&Compatible Protocol

    Compatible Protocol: CAN, RS485
