GTEF-672V-1MWH/500KW-C Capmega Graphene Solid State Supercapacitor Battery 1

GTEF-672V-1MWH/500KW-C Capmega Graphene Solid State Supercapacitor Battery 2

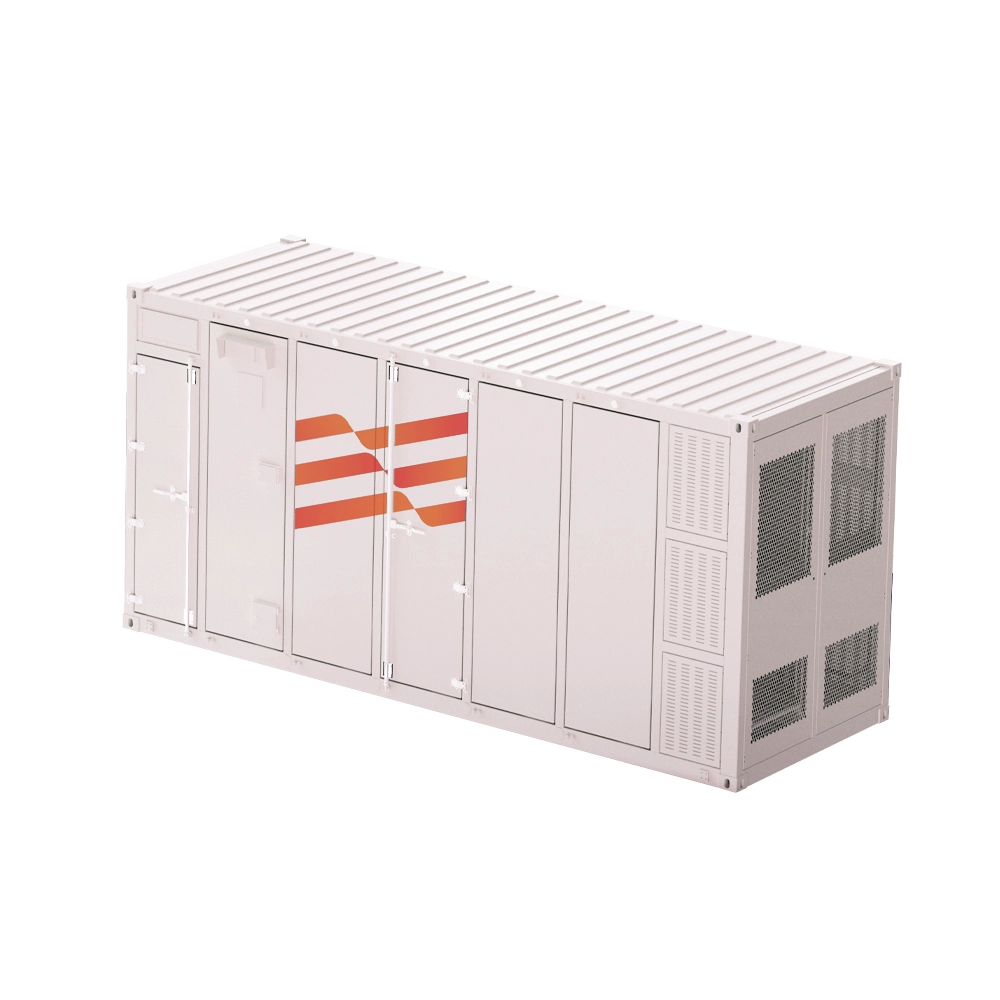

GTEF-672V-1MWH/500KW-C Capmega Graphene Solid State Supercapacitor Battery

GTEF-672V-1MWH/500KW-C system is designed to provide high-power (above MW level) independent micro-grid solution, which can combine various input power sources, improve the reliability of power supply.

Product Features

● Graphene Solid State Supercapacitor Battery

● Long cycle life time

● Millisecond level response speed of BESS controller, Multiple ESS control functionalities;

● Compatible communication interface with battery management system (BMS);

● Proprietary versatile control algorithms and logics;

● Hundreds of communication protocols are supported;

● Work with different renewable energy for smoothing the power generation;

● Anti-islanding operation;

● The other functions required by grid requirement;

Share With:

Inquiry

Write a Review

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-672V500KW/1MWH-C
Nominal Voltage	672Vd.c.
Max. Charge Voltage	756Vd.c.
Standard Discharge Cut-off Voltage	609Vd.c.
Nominal Capacity	490AhX3
Energy Storage	1008kWh
Max Continuous Charge Current	750A
Max Continuous Discharge Current	750A
Grid-tied AC Connection	380/400(-15%~15%) Vac
Operating Temperature Range Charge	0℃~+55℃
Operating Temperature Range Discharge	-20℃~+60℃
Communication	CAN, RS485, MODBUS TCP
Dimensions	6058mm2438mm2591mm

Dimensions(WxDxH)	6058mm2438mm2591mm
Mount Options	On floor
