Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-716V100K-R
Energy storage	150.5kWh
Nominal Voltage	716.8Vdc
Maximum Charge Voltage	806.4Vd.c (Recommended high voltage limit:784V)
Discharge Cut-off Voltage	604.8Vd.c (Recommended low voltage limit: 627.2V)
ESR/AC @1KHz 50% SOC	<150mΩ
Max. Continuous Charge Current	150A
Max. Continuous Discharge Current	150A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	10,000 times(70%EOL)
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	IP20 Indoor
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485, LAN

Weight	1560kg

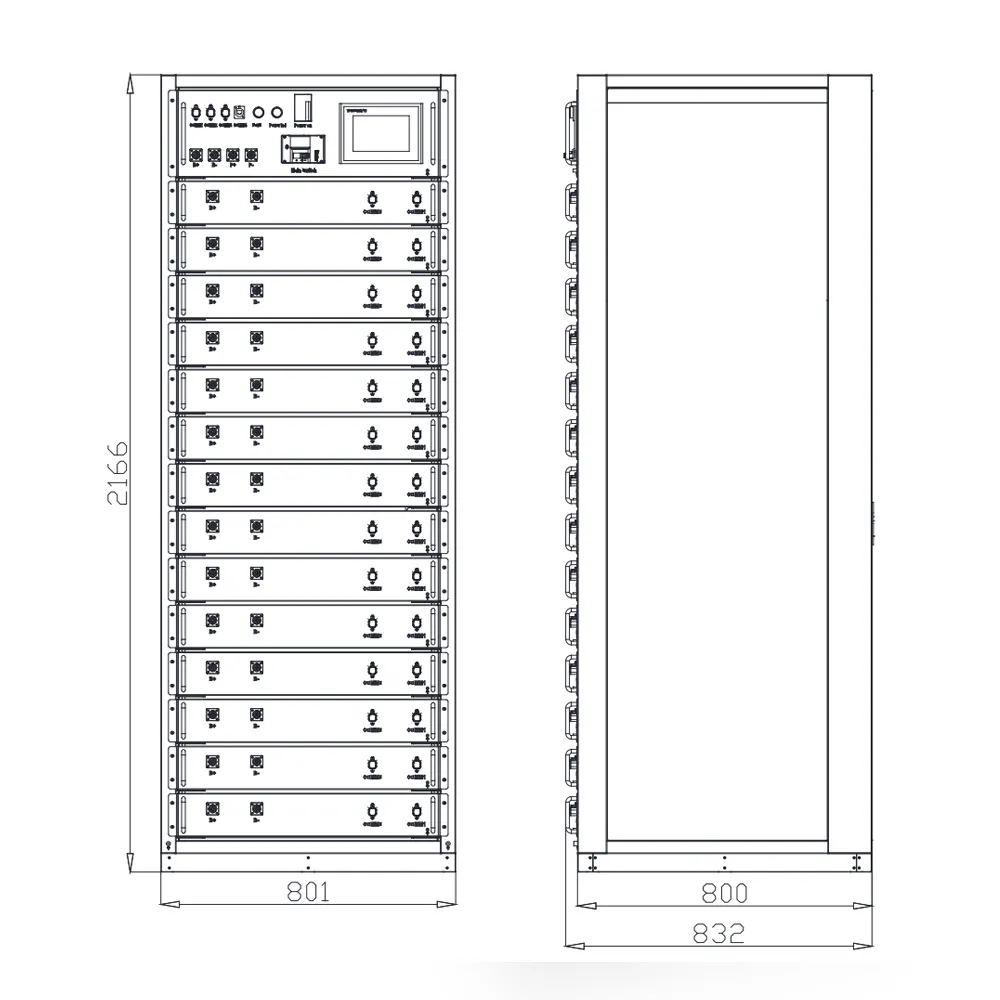

Dimensions(WxDxH)	801x832x2166(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· household batteries for solar is designed by our experts bringing the latest concepts into the designing process.

· We meet the quality standards as per the customer demands.

· integrates R&D, production, sales and technical services.

Company Features

· is known for its groundbreaking innovations that have reshaped the whole household batteries for solar industry.

· As a major player in household batteries for solar business, has continuously upgraded technologies to guarantee the safe production of products.

· aims to provide high-quality service for customers.

Application of the Product

household batteries for solar can be used in a variety of situations.

According to different needs of customers, we could customize comprehensive and efficient solutions for them.
