Product Parameters

General Characteristics

Mechanical Specifications

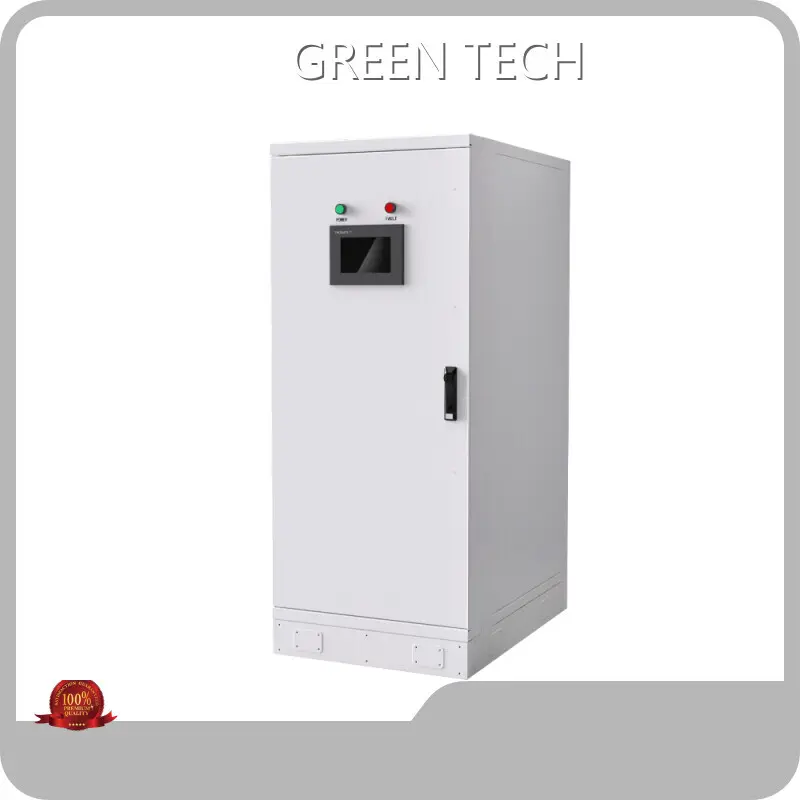

Part Number	GTEM-800V96KW-57KWH-R
Energy storage	57.5kWh
Nominal Voltage	799.2Vd.c
Maximum Charge Voltage	896.4Vd.c
Discharge Cut-off Voltage	648Vd.c
ESR/AC @1KHz 50% SOC	<70mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	120A
Cooling Method	Natural
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal
Monitoring Data	System voltage,current, temperature,SOC,SOH,cell’s voltage
Parallel Connection	Up to 16 parallel connections allowed
Storage Conditions	-20℃~+40℃ 25%~95%RH SOC>30%, one full charge needed per two months

Weight	550kg
Dimensions(WxDxH)	600x870x1450（mm）
