Eco FriendlyGraphene Battery Manufacture

Product Parameters

General Characteristics

Mechanical Specifications

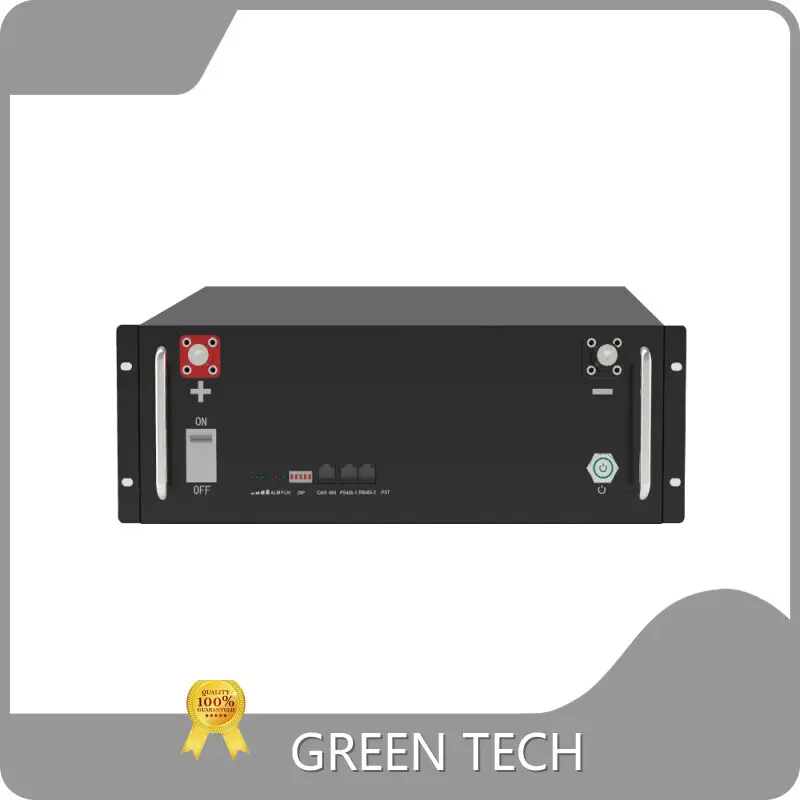

Part Number	GTEM-48V7400-E
Energy storage	7.45kWh
Nominal Voltage	51.8Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	39.2Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Round Trip Efficiency	96.8%
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural cooling
Monitoring Data	System voltage, current, SOC, SOH, temperature, cycle, cell's voltage
Shell Material	Metal & ABS plastic

Weight	52kg
Dimensions(WxDxH)	470x565x170(mm)
Operating Humidity	0-90%RH Non-condensing

Certificate Options

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· Graphene battery is made of premium raw materials that are sourced from trusted vendors.

· This product has comprehensive functionality and stable performance thanks to the quality inspections conducted by our dedicated team.

· has strong advantages in the work effect and quality management.

Company Features

· is known as an expert in offering quality Graphene battery. Our strong manufacturing strength is a powerful driving force for further development.

· We have people with a diversity of experience. Based on their professional foundation, namely the expertise accumulated over years in the Graphene battery industry, they will identify and implement the optimum solution for each problem.

· Our business goal is to improve our production efficiency by using new production technologies to reduce emissions and increase recycling.

Application of the Product

Our Graphene battery can be used in multiple areas of multiple industries.

has been engaged in the production of for many years and has accumulated rich industry experience. We have the ability to provide comprehensive and quality solutions according to actual situations and needs of different customers.
