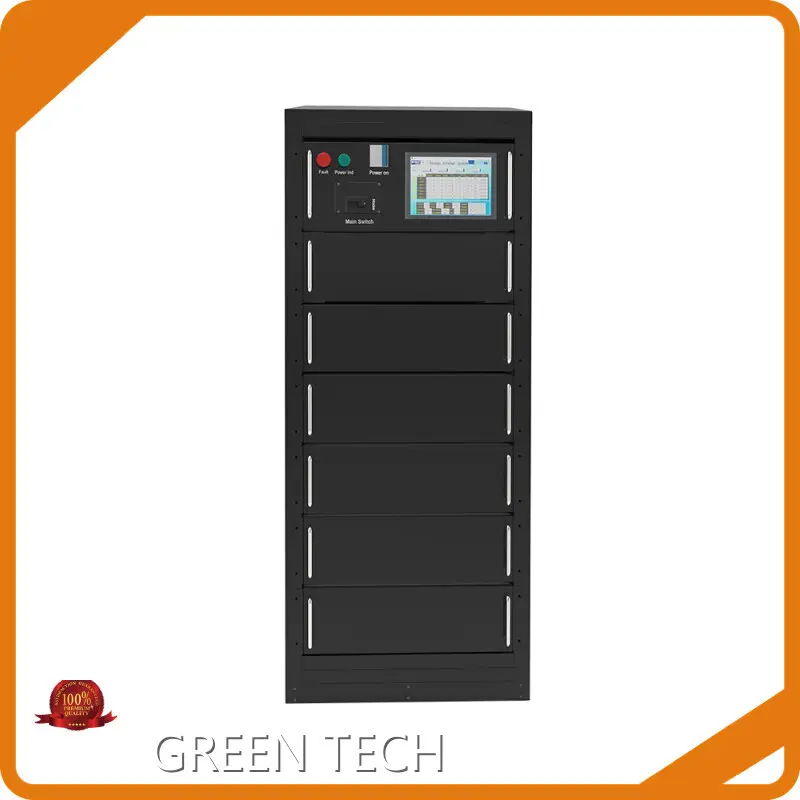

Electrical Energy Storage System 560x730x1380(mm) Brand 800Vdc

Series:

EM Series

Nominal Voltage:

800Vdc

Max. Continuous Charge Current:

80A

Discharge Cut-off Voltage:

626Vdc

Dimensions(WxDxH):

560x730x1380(mm)

Inquiry

Product details of the electrical energy storage system

Product Introduction

The production of electrical energy storage system is based on the industry's standards. The quality of this product can be viewed through quality inspection reports. As per pallets, choose standard export wooden pallets to ensure solid and safe out packing.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-800V57K-R
Energy storage	57kWh
Nominal Voltage	800Vdc
Maximum Charge Voltage	900Vdc
Discharge Cut-off Voltage	626Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	150A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Shell Material	Metal
Parallel Connection	No limited ( add HVB )
communication	CAN, RS485

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Company Feature

• After the development for years, finally makes a figure in the industry.
• provides professional pre-sales, sales, and after-sales services to meet the needs of customers.
• has a high-quality and high-efficiency production team. With years of production experience, the team members can effectively solve problems during the production.
Dear customer, if you have any questions about please call us. We are dedicated to serving you.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
