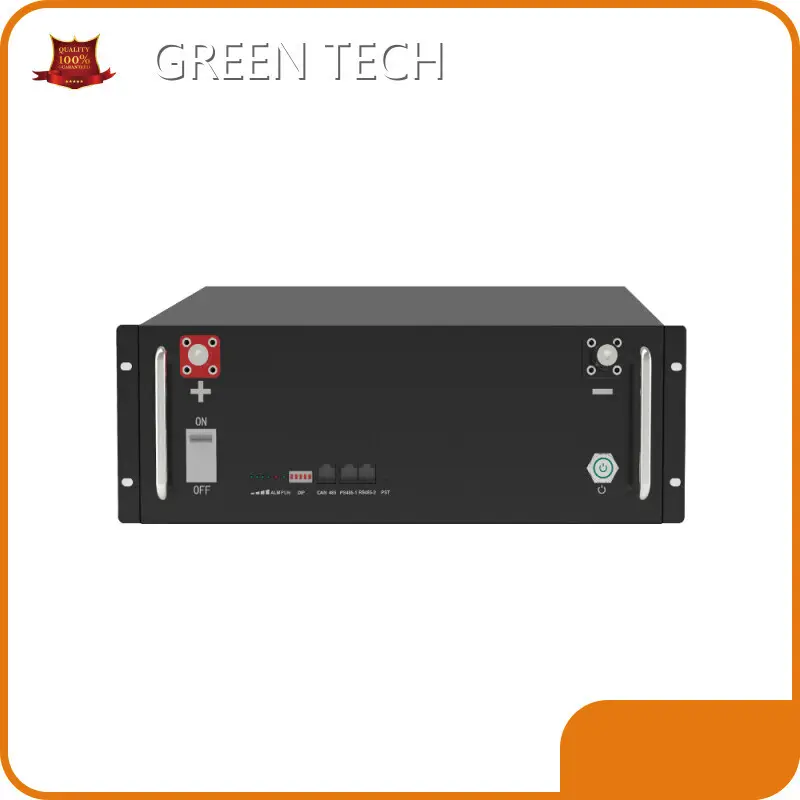

Energy Storage Systems 39.2Vdcdesign

Company Advantages

· With a team of highly specialized designer, our energy storage systems is given an aesthetic appearance design.

· The quality of the product has been greatly assured by out stringent process quality control system.

· With advanced equipment, has strong production capacity.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V7400-E
Energy storage	7.45kWh
Nominal Voltage	51.8Vdc
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	39.2Vdc
ESR/AC @1KHz 50% SOC	<10mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Round Trip Efficiency	96.8%
Cells Self-discharge Rate	2% per month
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural cooling
Monitoring Data	System voltage, current, SOC, SOH, temperature, cycle, cell's voltage
Shell Material	Metal & ABS plastic

Weight	52kg
Dimensions(WxDxH)	470x565x170(mm)
Operating Humidity	0-90%RH Non-condensing

Certificate Options

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Features

· is noted as a leading enterprise in energy storage systems realm.

· has strong financial, professional and technical strength. advanced technology and sophisticated production ensure product quality and customer interests. The first-class lever of equipment, production technology as well as the operation and management insure energy storage systems's first-class quality.

· We work with our clients to implement measures to mitigate and adapt to the effects of climate change, as well as identify and manage the risks of natural disasters. Inquire online!

Product Comparison

Our energy storage systems is more competitive than similar products, as shown in the following aspects.
