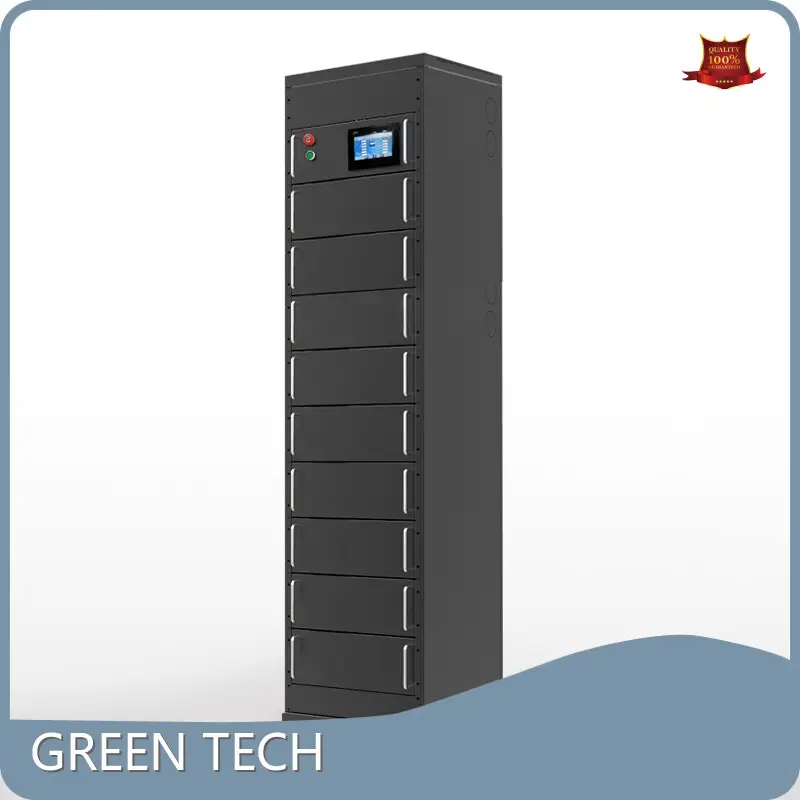

Energy Storage Systems Manufacture 856.8Vdc

Company Advantages

· energy storage systems is made from durable raw materials with good properties.

· Our strict quality control procedures ensure that our products are of good quality.

· customer service has the capability to solve any question about the energy storage systems.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEG-700V39K-R
Energy storage	39.4kWh
Nominal Voltage	703.8Vdc
Maximum Charge Voltage	856.8Vdc
Discharge Cut-off Voltage	642.6Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	280A
Max. Continuous Discharge Current	280A
Discharge rate	5C
Max. Continuous Output Power	196kW
Charge Temperature*1	-20℃~+60℃
Discharge Temperature*2	-40℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	50,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Liquid cooling ( cycle frequently )
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Certificate

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Features

· As a key focus in developing and manufacturing energy storage systems, has been prestigious for many years in the domestic markets.

· We have a professional engineer team to design our own products and carry out customization according to clients' requirements. The engineers are quite acquainted with the trends and buyers' tendencies in the energy storage systems industry. We have served more customers from all over the world in recent years. At this moment, our sales network has already covered the whole USA, Germany, Japan, South Africa, Russia, and other countries and regions. Over the years, we have opened up the international energy storage systems market. Customers from all over the world have built up cooperations with us, and we have been the long term partner of some world-famous brands.

· We always adhere to the "integrity, quality, and service". We will continue to innovate new approaches to improve our service capabilities and strive hard to provide valuable and timely responses to any problems.

Application of the Product

The energy storage systems produced by our company is suitable for various occasions in industry.

With a focus on customers, analyzes problems from the perspective of customers and provides comprehensive, professional and excellent solutions.

Product Comparison

After improvement, the energy storage systems produced by is more brilliant in the following aspects.
