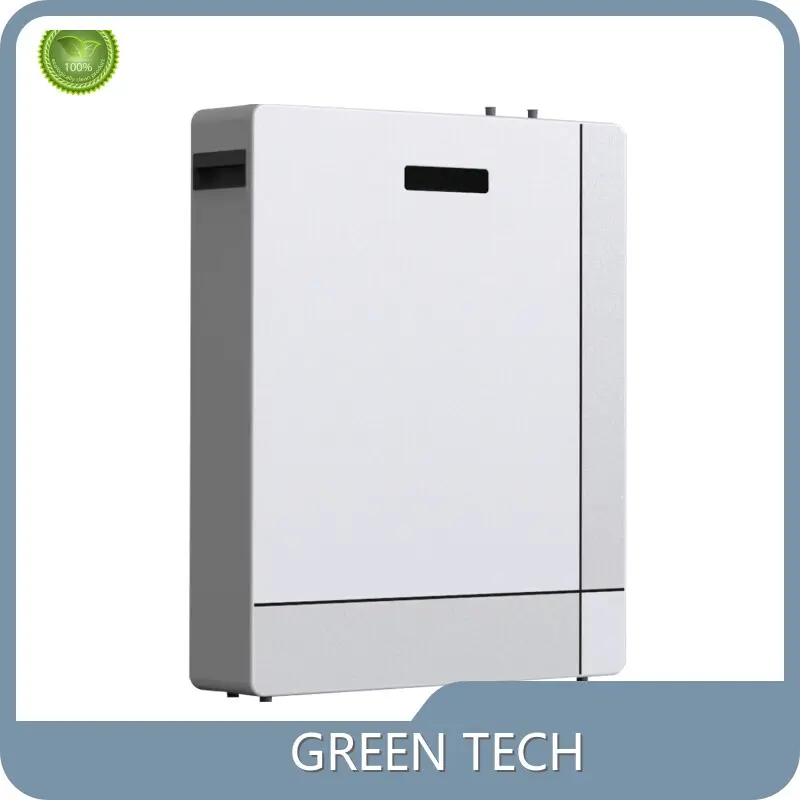

Graphene Battery 100A 10kWhcompany 1
Graphene Battery 100A 10kWhcompany 2
Graphene Battery 100A 10kWhcompany 1
Graphene Battery 100A 10kWhcompany 2

Graphene Battery 100A 10kWhcompany

Weight:
117kg
Max. Continuous Discharge Current:
100A
Max. Continuous Charge Current:
100A
Energy storage:
10kWh
Dimensions(WxDxH):
730x750x138(mm)
Inquiry
Send your inquiry

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEF-48V10K-W

Energy storage

10kWh

Nominal Voltage

51.2V/DC

Maximum Charge Voltage

57V/DC

Discharge Cut-off Voltage

44V/DC

ESR/AC @1KHz 50% SOC

<9mΩ

Max. Continuous Charge Current

100A

Max. Continuous Discharge Current

100A

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

10000 times

Round Trip Efficiency*1

97.7%

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Cooling Method

Natural

Shell Material

Metal & ABS plastic

Parallel Connection

Up to 16 sets

Monitoring Data

System voltage, current, temperature, SOC, SOH, cycle, cell's voltage

Weight

117kg

Dimensions(WxDxH)

730x750x138(mm)

Mount Options

Wall/ floor

Certificate Options
1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)


Company Advantages

· The design of Graphene battery is elaborately designed with the combination of functionality and aesthetics.

· The product has a complete life cycle due to the strict testing which is in line with the internal and external standards. Thus, the product is durable in use for a long time.

· This product has diversified applications in various industries.


Company Features

· has been providing high-quality Graphene battery over the years. We have earned a good reputation among many competitors based in China.

· has the excellent equipment with the strong technique power.

· From design concept to the finished product, we provide a dedicated, personal service. Get quote!


Application of the Product

The Graphene battery produced by can be used in many fields.

We will communicate with our customers to understand their situations and provide them with effective solutions.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
