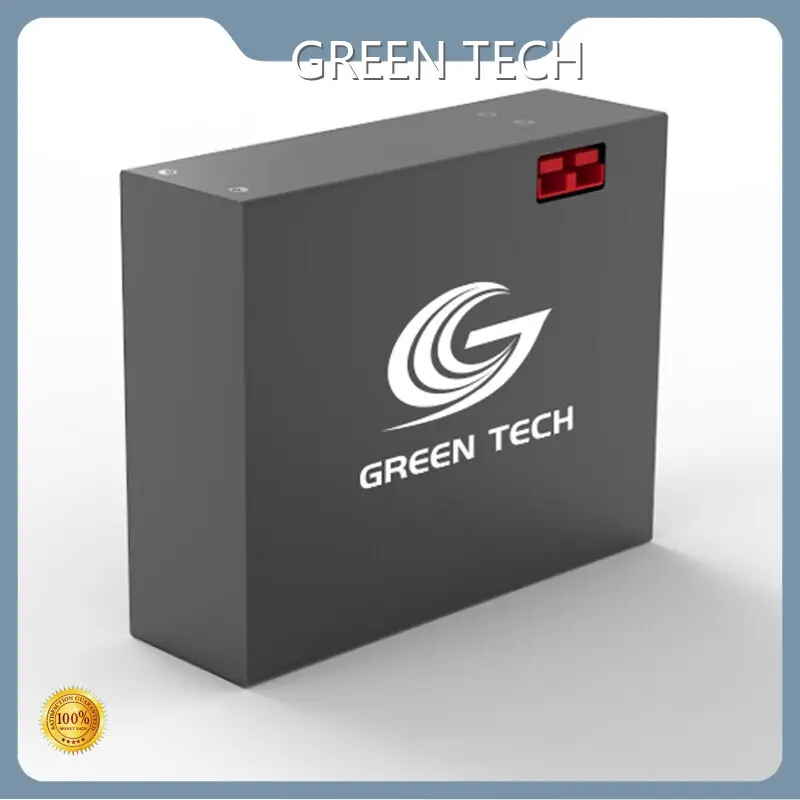

Graphene Battery 242x65x173mm Brand 20Vdc

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-24V1000-E
Energy storage	1.0kWh
Nominal Voltage	24Vdc
Maximum Charge Voltage	29Vdc
Discharge Cut-off Voltage	20Vdc
ESR/AC @1KHz 50% SOC	<15mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	50A
Peak Current	100A
Cooling Method	Natural
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	SOC,voltage,current, temperature
Series Connection	Not allowed
Parallel Connection	Up to 10sets
Series-Parallel Connection	Not allowed

Weight	8.5kg
Dimensions(WxDxH)	242x65x173(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The innovative design of Graphene battery has made it to rank top in the market.

· All incoming materials are inspected to ensure they match the quality requirement.

· With so many advantages, the product has a vast application prospect.

Company Features

· With many years of efforts on the design and production of Graphene battery, has become one of the most competitive manufacturers in this industry.

· is equipped with experienced and professional technical group to ensure quality.

· We are endeavoring to minimize our negative impact on the environment. We will try to adopt a lean manufacturing way that helps reduce wastes and pollution during production.

Application of the Product

Graphene battery is widely used in many industries.

With a focus on is dedicated to providing reasonable solutions for customers.
