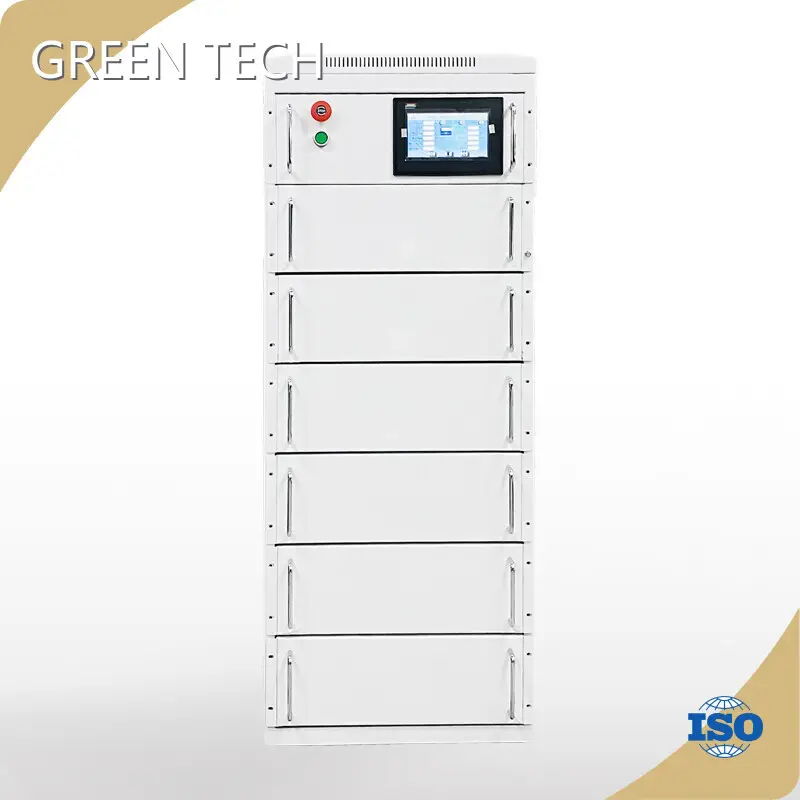

Graphene Battery 324Vdc

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-400V50K-R
Energy storage	50.3kWh
Nominal Voltage	400Vdc
Maximum Charge Voltage	448.2Vdc
Discharge Cut-off Voltage	324Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	120A
Max. Continuous Discharge Current	120A
Round Trip Efficiency*1	97.5%
Projected Cycle Life ( 25℃)	10,000 times (70%EOL)
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature, SOC,SOH,cycle,cell’s voltage
Parallel connection optional	Cannot be connected in parallel (If parallel connection is required, please inform in advance )

Weight	500kg
Dimensions(WxDxH)	611x735x1487(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· Graphene battery will impress users with compelling features and distinctive styles.

· Ceaseless innovations of our engineers and efficient production ratio guarantee to be the leading Graphene battery supplier.

· has established long-term cooperative relationships with a number of companies.

Company Features

· mainly produces Graphene battery integrating sales and production into together.

· To achieve of the aim of developing our staff have constantly introduced high technology to manufacture Graphene battery.

· By cause of accurate market position, dedicates itself into the design and sales of Graphene battery. Please contact us!

Application of the Product

The Graphene battery produced by is widely used.

Since the establishment, has always been focusing on the R&D and production of With great production capability, we can provide customers with personalized solutions according to their needs.
