Graphene Battery 50Afactory

Maximum Charge Voltage:

57.6Vdc

Max. Continuous Discharge Current:

50A

Max. Continuous Charge Current:

50A

Energy storage:

4.5kWh

Discharge Cut-off Voltage:

44.8Vdc

Inquiry

more products

Capwall

Graphene Supercapacitor Battery

Solid-state Supercapacitor Battery

Hybrid Inverter

Complete Residential Solar Power Systems

Send your inquiry

Product Parameters

General Characteristics

Mechanical Specifications

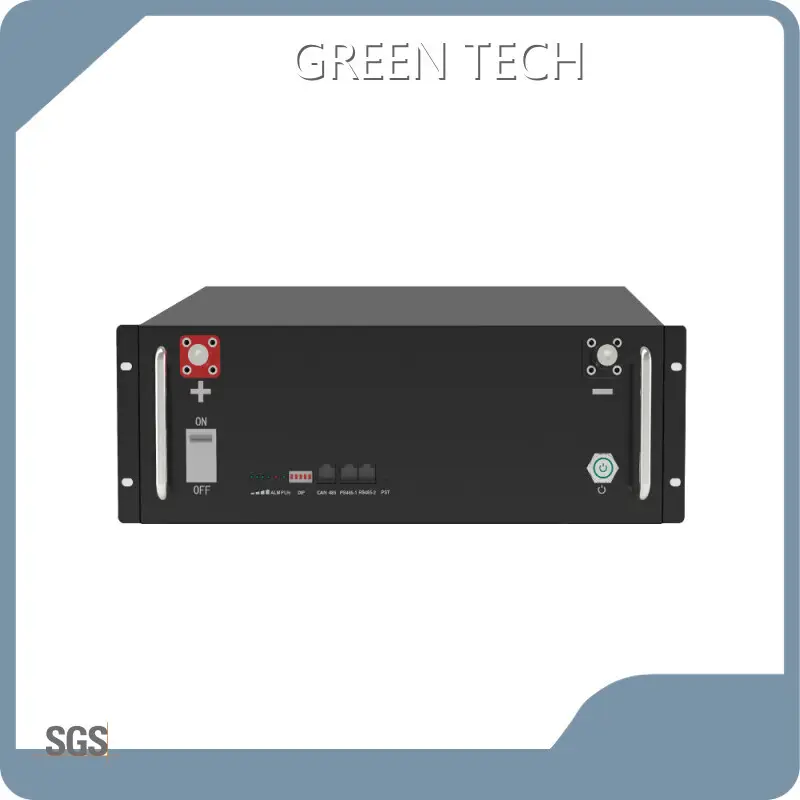

Part Number	GTEF-48V4500-E
Energy storage	4.71kWh
Capacity	92Ah
Nominal Voltage	51.2Vdc
Maximum Charge Voltage	57.6Vdc
Discharge Cut-off Voltage	44.8Vdc
ESR/AC @1KHz 50% SOC	<20mΩ
Max. Continuous Charge Current	50A
Max. Continuous Discharge Current	50A
Communication	CAN, RS485
Monitoring Data	System,voltage,current, temperature,SOC,SOH,cells’ voltage
Protection & Alarms	Over charge,over current,over temperature,over discharge
Anti-theft	Intelligent software lock; GPS, displacement lock,buzzer alarm
Projected Cycle Life ( 25℃)	6,000 times
Recommended Depth of Discharge	≤95%
Maximum Depth of Discharge	95%
Shell Material	Metal & ABS plastic
Cooling Method	Natural
Series Connection	Not allowed
Parallel Connection	Up to 16sets (need to clarify when place order)
Series and Parallel Connection	Add controller box (need to clarify when place order)

Weight	38kg
Dimensions(WxDxH)	486x590x133.3(mm)
Mount Options	Standard 19” rack mounted

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· Graphene battery is produced according to the high production standards through the combination of traditional craftsmanship and modern technology.

· We are committed to research and development of new technology, so that our product quality and performance is in the forefront of the industry.

· aligns service behaviors with business objectives.

Company Features

· is highly reputable in the industry. We are widely accepted because of our strong capacity for manufacturing Graphene battery.

· owns a team of professional R&D group and skilled technicians.

· During cooperation, will show full respect to our customers. Inquire online!

Application of the Product

The Graphene battery produced by is widely used.

provides comprehensive and reasonable solutions based on customer's specific situations and needs.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
