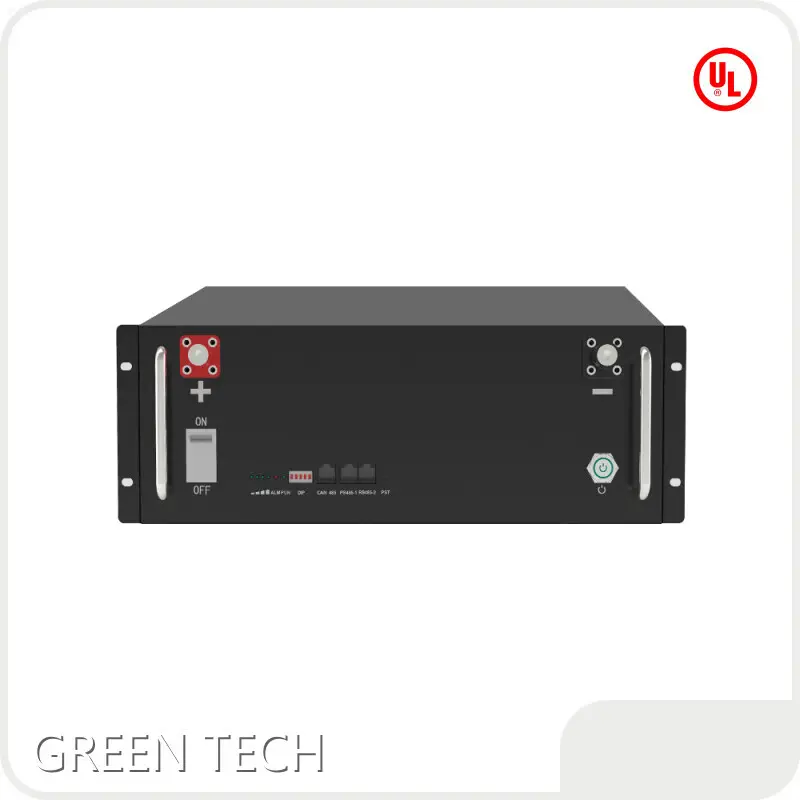

Graphene Battery Brand 100A 7.5kWh

Nominal Voltage:
51.8Vdc
Max. Continuous Discharge Current:
100A
Max. Continuous Charge Current:
100A
Energy storage:
7.5kWh
Discharge Cut-off Voltage:
42Vdc
Inquiry

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEM-48V7500-E

Energy storage

7.5kWh

Nominal Voltage

51.8Vdc

Maximum Charge Voltage

58Vdc

Discharge Cut-off Voltage

42Vdc

ESR/AC @1KHz 50% SOC

<10mΩ

Max. Continuous Charge Current

100A

Max. Continuous Discharge Current

100A

Cooling Method

Natural

Cells Self-discharge Rate

2% per month

Projected Cycle Life ( 25℃)

20,000 times

Recommended Depth of Discharge

≤90%

Maximum Depth of Discharge

100%

Shell Material

Metal & ABS plastic

Monitoring Data

System voltage, current, temperature, SOC, SOH, cycle, cell's voltage

Series Connection

Not allowed

Parallel Connection

Up to 16 sets

Series-Parallel Connection

Not allowed

Weight

72kg

Dimensions(WxDxH)

475x685x177(mm)

Mount Options

On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)

Download


Company Advantages

· Graphene battery is made of the finest raw materials that meet with the rigorous quality and safety standards.

· Strict quality tests are conducted before shipment.

· The production methods of are conducive to resource conservation and environmental protection.


Company Features

· With large manufacture base, has big advantage in capacity for Graphene battery.

· has the strict quality system and the Graphene battery have the overload test to ensure the quality.

· Efficiency and waste reduction are the focus jobs towards sustainable development. We will adopt new technology to improve all aspects of production to reduce energy consumption while maintaining high efficiency.


Application of the Product

The Graphene battery produced by our company is widely used in various industries and fields.

insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
