Graphene Battery EG Series Company 1
Graphene Battery EG Series Company 2
Graphene Battery EG Series Company 1
Graphene Battery EG Series Company 2

Graphene Battery EG Series Company

Series:
EG series
Part Number:
GTEG-23V4180-F
Nominal Voltage:
23Vdc
Maximum Charge Voltage:
28Vdc
Dimensions(WxDxH):
650X195X600mm
Inquiry
Send your inquiry

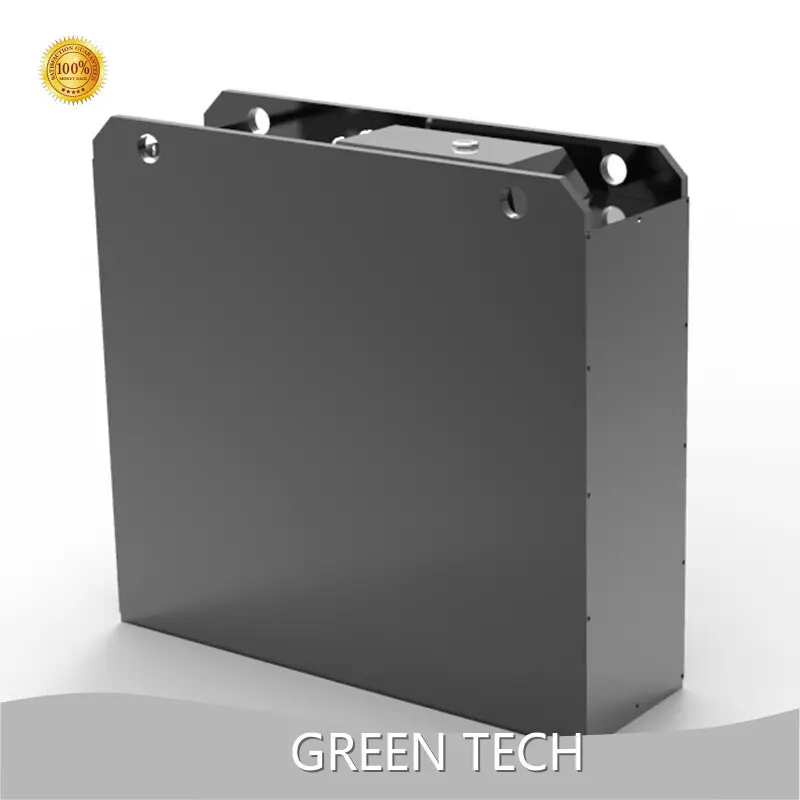

Product details of the Graphene battery


Product Description

Graphene battery has a unique and fashionable appearance. The value of Graphene battery are recognized by most industry insider. Graphene battery produced by is highly marketable.

Product Parameters
General Characteristics
Mechanical Specifications

Part Number

GTEG-23V4180-F

Energy storage

4.18kWh

Nominal Capacity

182Ah

Nominal Voltage

23Vdc

Absolute Maximum Voltage

28Vdc

Cut-off Voltage (discharging)

18Vdc

Configuration

10S13P

Pack resistance

< 10 mΩ

Continuous Charge Current

150A

Continuous Discharge Current

150A

Peak Discharge Current

300A

Recommended Depth of Discharge

90%

Maximum Depth of Discharge

100%

Cooling

Natural cooling

Ingress Protection

IP55

Storage Humidity

25% ~ 95%RH

Operating Humidity

0 – 90% RH

Storage Temperature

-20℃~40 ℃

Weight

225kg

Dimensions(WxDxH)

650*195*600mm

Mount Options

Wall/ floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)
1 (10)
2 (9)
2 (9)
3 (7)
3 (7)
4 (7)
4 (7)
5 (8)
5 (8)
6 (11)
6 (11)
7 (6)
7 (6)

Download


Company Advantage

• Gathered multi traffic lines, the location of provides convenience for transportation. In this way, we ensure the efficient transportation of different products.
• After years of rapid development, expands the business range and improve corporate strength and social recognition.
• can provide free technical services for customers and supply manpower and technical guarantee.
• Our company actively applies the 'Internet +' thinking to the business operation. We arrange online and offline all-round layout and we combine the online e-commerce platform sales with offline franchise business model. So the annual sales volume of the products increases rapidly, and the sales range is getting wider and wider.
is very glad to serve you. If you have any doubts, feel free to consult us.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
