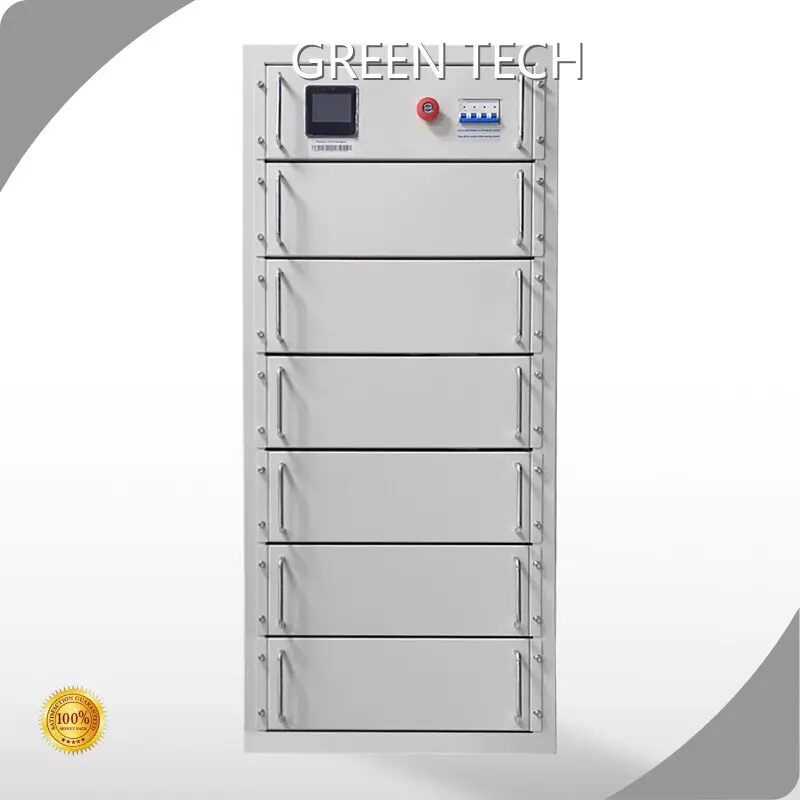

Product details of the energy storage systems
Product Description
The production of energy storage systems follows the international standards and green norms. Its reliable performance is guaranteed with advance technology. Customers hold a positive attitude toward the market potential of the product.
Part Number |
GTEM-700V25k-R |
Energy storage |
25.3kWh |
Nominal Voltage |
702Vdc |
Maximum Charge Voltage |
83.16Vdc |
Discharge Cut-off Voltage |
554.4Vdc |
ESR/AC @1KHz 50% SOC |
<100mΩ |
Max. Continuous Charge Current |
50A |
Max. Continuous Discharge Current |
100A |
Discharge rate |
2.77C |
Max. Continuous Output Power |
70kW |
Charge Temperature*1 |
0℃~+55℃ |
Discharge Temperature*2 |
-30℃~+60℃ |
Operating Humidity |
0~90% RH Non-condensing |
Cells Self-discharge Rate |
2% per month |
Projected Cycle Life ( 25℃) |
20,000 times |
Recommended Depth of Discharge |
≤ 90% |
Maximum Depth of Discharge |
100% |
Monitoring Data |
System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage |
Terminal |
Large power energy storage terminals |
Environmental Protection |
Indoor |
Cooling Method |
Natural cooling |
Shell Material |
Metal |
Weight |
420kg |
Dimensions(WxDxH) |
560x732x1600(mm) |
Mount Options |
On floor |
Compatible Protocol: CAN, RS485
