High Quality Energy Storage Systems for Workplace

Product details of the energy storage systems

Product Overview

energy storage systems is produced as per the industry specifications. The product has increased its competitiveness with its improved quality, performance, and service life. The sales network of is famous for its wide applications into different regions.

Product Description

not only pays attention to the whole, but also focuses on the details of energy storage systems. In this way, we make sure that our products are better reflected in the following details.

Product Parameters

General Characteristics

Mechanical Specifications

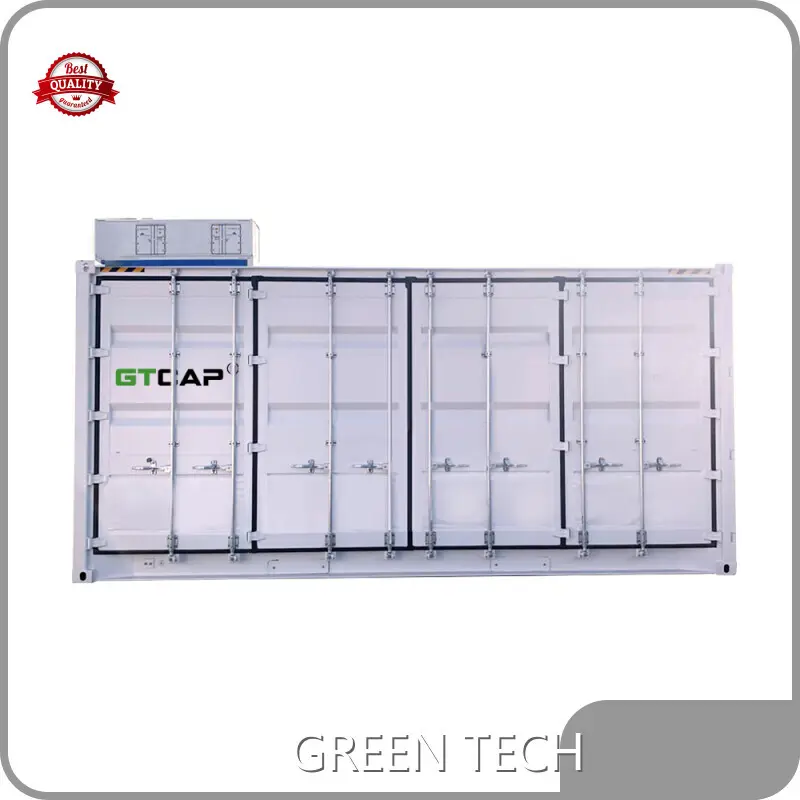

Part Number	GTEF-752V2.2MWh/1MW-C
Nominal Voltage	752Vdc
Max. Charge Voltage	846Vdc
Standard Discharge Cut-off Voltage	658Vdc
Nominal Capacity	2940Ah
Energy Storage	2210kWh
Standard Charge Constant Current @25℃	1330A
Internal Resistance	30mΩ
Energy Efficiency	95%（0.5C/0.5C, @25℃）
Heating Power	25kW
Cooling Method	Forced Air
Mode of wire entry	Lower wiring Pattern
IP Grade	IP65
Dielectric Strength	AC3000V@50Hz, 1min
Communication	CAN, RS485, LAN

Dimensions(WxDxH)	12192*2438*2896mm
Mount Options	On floor

Certificate Options



1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Introduction

a fast-growing enterprise, has been committed to the production of since its establishment. always focuses on customers' needs and strives to meet their needs over the years. We are committed to providing comprehensive and professional services. We have strong strength and rich experience. And we are looking forward to discussing business cooperation with partners from all walks of life!
