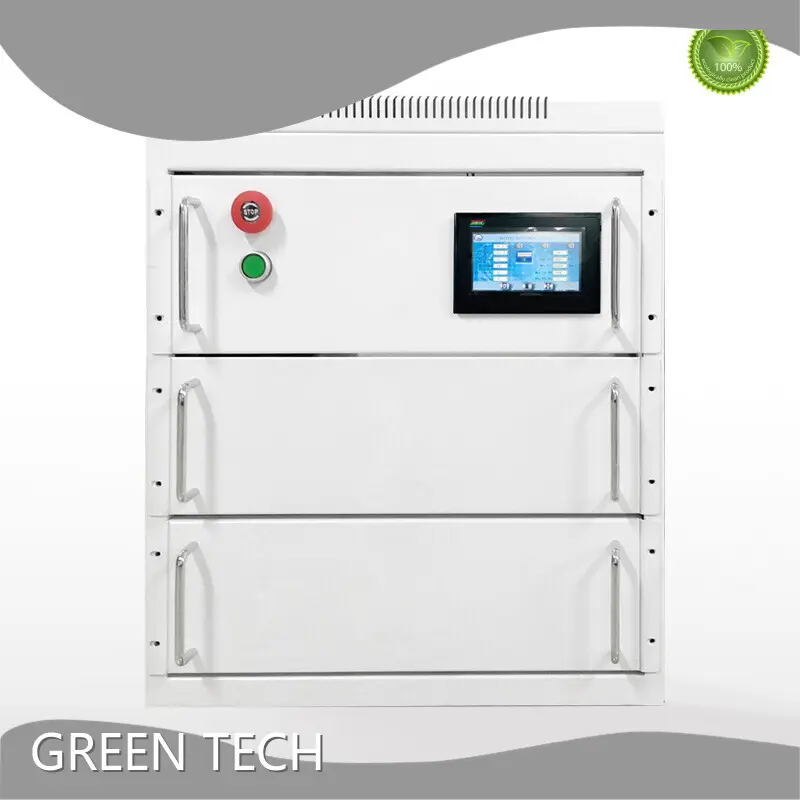

Hot Household Batteries for Solar 14.4kWh Brand

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-400V14.4K-R
Energy storage	14.4kWh
Nominal Voltage	400Vdc
Maximum Charge Voltage	453.6Vdc
Discharge Cut-off Voltage	291.6Vdc
ESR/AC @1KHz 50% SOC	<200mΩ
Max. Continuous Charge Current	30A
Max. Continuous Discharge Current	30A
Round Trip Efficiency*1	96%
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Monitoring Data	System voltage,current, temperature, SOC,SOH,cycle,cell’s voltage
Parallel connection optional	Up to 4sets (400V 60KWh)
Communication	CAN, RS485

Weight	165kg±5kg
Dimensions(WxDxH)	520x732x653(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· Our household batteries for solar is available in various specifications and is designed and manufactured as per the requirements of our customers.

· Internal quality control team makes sure the comprehensive functionality.

· provides quality guarantee for household batteries for solar.

Company Features

· While manufacturing and supplying quality household batteries for solar at a reasonable price, has earned a high level of customer trust.

· has a number of high-level knowledge and technical staff to help better guarantee the quality of household batteries for solar.

· aims to be an highly advanced household batteries for solar manufacturer. Inquire online!

Application of the Product

Our household batteries for solar is widely used in multiple industries and fields.

can provide customers with one-stop solutions of high quality, and meet customers' needs to the greatest extent.
