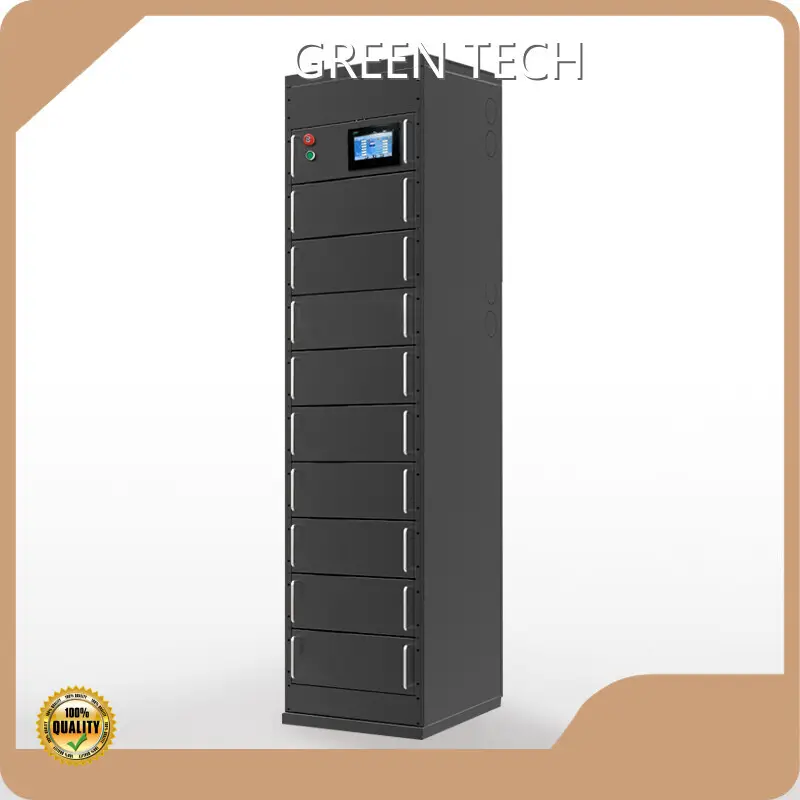

Hothousehold Battery Pack 703.8Vdc Brand

Company Advantages

· household battery pack features with reasonable structure and appealing design.

· This offered product brings direct performance benefits to the buyer.

· offers well-established after sales service for household battery pack.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEG-700V39K-R
Energy storage	39.4kWh
Nominal Voltage	703.8Vdc
Maximum Charge Voltage	856.8Vdc
Discharge Cut-off Voltage	642.6Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	280A
Max. Continuous Discharge Current	280A
Discharge rate	5C
Max. Continuous Output Power	196kW
Charge Temperature*1	-20℃~+60℃
Discharge Temperature*2	-40℃~+60℃
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	50,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Cooling Method	Liquid cooling ( cycle frequently )
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Certificate

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Features

· markets a number of different household battery pack for many years. We are trying hard to be a top leader in this industry in China.

· has a professional household battery pack production base. has its own production bases, research and development centers as well as technical service centers. adopts worldwide operations mode to meet unique household battery pack requirements.

· adheres to the principle that customers’ needs are the first thing that the company should consider. Get info!

Product Details

Our household battery pack are processed by the latest technology in the industry, and they perform better in the following details.

Application of the Product

household battery pack can meet the different needs of customers.

is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.

Product Comparison

Compared with similar products in the market, the household battery pack of has the following main advantages.
