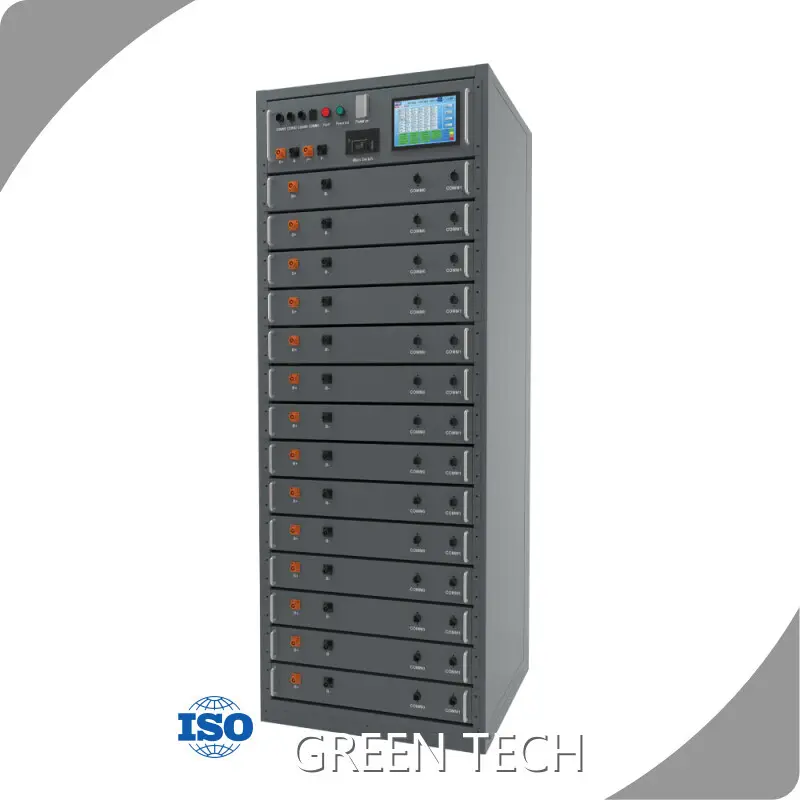

Household Batteries for Solar 1560kg Brand GTEF-716V150kWh-R

Product details of the household batteries for solar

Quick Overview

A strong R&D team provides household batteries for solar with technical improvements. The product combines versatility with reliable performance. household batteries for solar is widely used in the industry and is widely recognized by customers. As a professional and experienced brand, it is important for to attach great importance to the quality of household batteries for solar.

Product Description

With a focus on product's quality, our company pursues perfection in every detail.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-716V100K-R
Energy storage	150.5kWh
Nominal Voltage	716.8Vdc
Maximum Charge Voltage	806.4Vd.c (Recommended high voltage limit:784V)
Discharge Cut-off Voltage	604.8Vd.c (Recommended low voltage limit: 627.2V)
ESR/AC @1KHz 50% SOC	<150mΩ
Max. Continuous Charge Current	150A
Max. Continuous Discharge Current	150A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	10,000 times(70%EOL)
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	IP20 Indoor
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485, LAN

Weight	1560kg
Dimensions(WxDxH)	801x832x2166(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Information

has developed into a large scale enterprise. Now, our products, household batteries for solar, has been expanded into a comprehensive product line. has gathered an experienced design and production team for household batteries for solar development. We have a simple goal: to ensure a process that works seamlessly so that we can constantly create long-term financial, physical and social value.
We supply our products of good quality and affordable price in long term. Please feel free to consult us!
