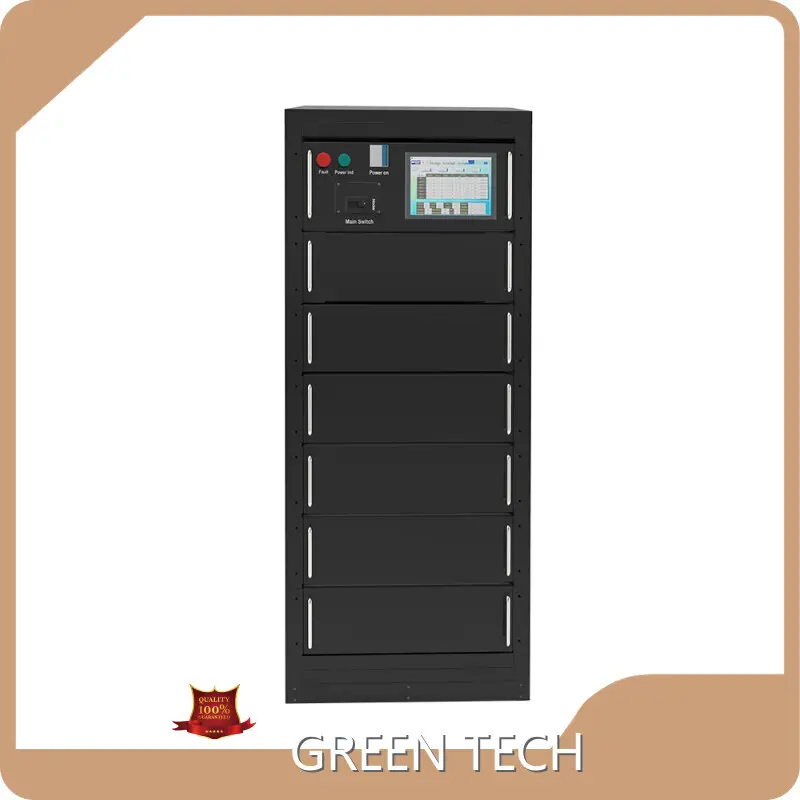

Household Batteries for Solar Brand ODM

Product details of the household batteries for solar

Product Information

household batteries for solar is manufactured from the best quality material. The product is secured by our QC team, which is high quality and durable. With the time going by, has gradually develops mature management system.

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-800V57K-R
Energy storage	57kWh
Nominal Voltage	800Vdc
Maximum Charge Voltage	900Vdc
Discharge Cut-off Voltage	626Vdc
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	80A
Max. Continuous Discharge Current	150A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	Indoor
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485, LAN

Weight	580kg
Dimensions(WxDxH)	560x700x1804(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Feature

• has the complete equipment, advanced technology, and experienced R&D and development personnel, which provides a strong guarantee for the development.
• Our company actively develops domestic and international market and builds relevant sales channels according to the market position of the products.
• Our company is located in a superior geographical position. And we are enjoying abundant resources and convenient transportation. It is a good natural and human geographical environment.
• provides customers with professional, diversified and international service solutions, which allows customers to enjoy the superior service.
If you have any doubts, feel free to leave your contact information. will communicate with you as soon as possible.
