Product details of the solar home batteries


Product Overview

solar home batteries is produced under standard 5S operating environment. The product has been tested and inspected according to the strict quality standards. Anytime there is problem for our solar home batteries, we will provide timely help.


Product Information

Our solar home batteries has the following differentiated advantages compared to similar products.

Inverters 6kW-8kW-10kW



Parameter

GT-EST06KH

GT-EST08KH

GT-EST10KH

Efficiency

Max Efficiency

>98 2%

>98 2%

>98 2%

PV Input



Max. PV input power(W)

7800

10400

13000

Max. PV input voltage(V)

1000

1000

1000

MPPT Operation Voltage Range (V)

180-950

180-950

180-950

Number of MPPT/PV Strings

2/1

2/1

2/1

Max. PV input current(A)

15/15

15/15

15/15

Short- circuit current of PV input( A)

18/18

18/18

18/18

Battery





Max Input/Output Voltage(V)

550

550

550

Operating Voltage Range(V)

180-550

180-550

180-550

Max Charge/Discharge Current(A)

25/30

25/30

25/30

Max Input/Output Power(W)

6000/6000

8000/8000

10000/10000

Battery Type

Li-ion/Lead-acid

AC Input and Output



Rated Power(W)

6000

8000

10000

Max. Apparent AC Power(VA)

6000

8000

10000

Nominal AC Voltage(Vac)

380,3L/N/PE

380,3L/N/PE

380,3L/N/PE

AC Power Frequency ( Hz)

50/60

50/60

50/60

Max. AC Output Current(A)

10

12

15

Power Factor Range

~1 (Adjusta

ble from 0.8 leading

to 0.8 lagging)

OutputTHDi(@Nominal Output)

<3%

<3%

<3%

Genaral Data

Operating Temperature

-25C …+60C(>45C derating)

Range Topology

Transformerless

Cooling Method

Natural convection

Ingress Protection Rating

IP65

Relative Humidity

0-100%, no condensation

DC Connection Type

MC/ Amphenol/ Phoenix

AC Connection Type

Plug-in Connector

Display

LCD

Communication With Portal

RS485 (WiFi/GPRS Optinal)

Communication With BMS

CAN

Communication With Meter

RS485

Certification

Safety

IEC62109-1/-2

EMC

EN61000-6-1/-2/-3,IEC61000

On- Grid standard

AS4777.2:2020 ,NRS097-2-1:2017 ,PN-EN50549-1:2019,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2019-4

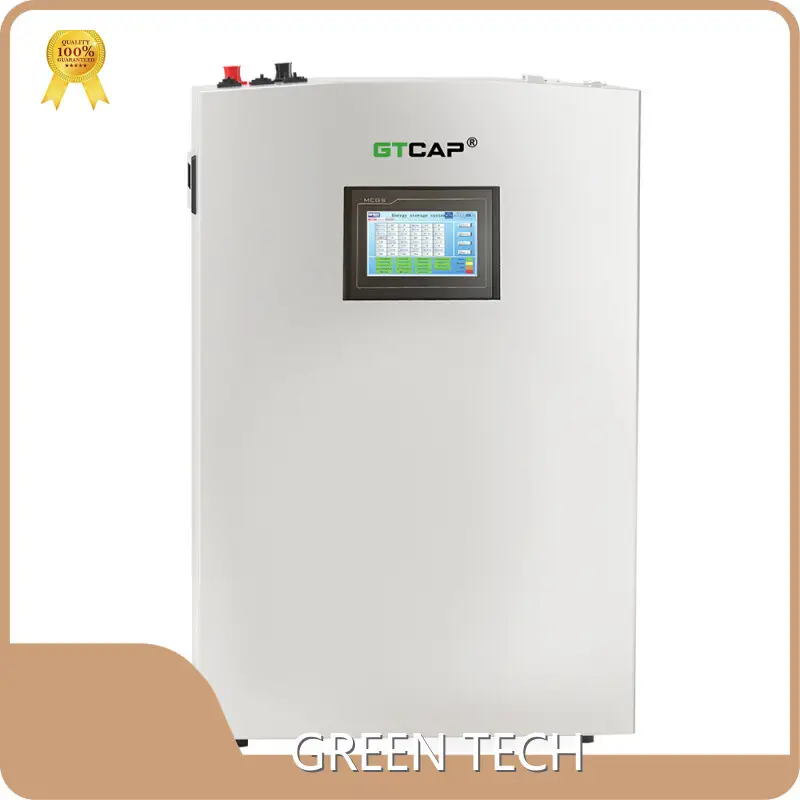

Battery energy storage system Capwall 400V14.4kWh/345V10kWh

Part Number

GTEM-400V14.4K-W

GTEF-345V10K-W

Energy storage

14.4kWh

10.3kWh

Nominal Voltage

400V/DC

345.6V/DC

Maximum Charge Voltage

453V/DC

390V/DC

Discharge Cut-off Voltage

292V/DC

300V/DC

ESR/AC @1KHz 50% SOC

<150mΩ 50A

<100mΩ 15A

Max. Continuous Charge Current

50A

15A

Max. Continuous Discharge Current

50A

30A

Round Trip Efficiency

96%

97.7%

Charge Temperature

0 C~ + 5 5 C

0 C~ + 4 5 C

Discharge Temperature

-20C~+60C

-30C~+60C

Self- discharge Rate

2% per month

2% per month

Recommended Depth of Discharge

≤90%

≤90%

Maximum Depth of Discharge

100%

100%

Cooling Method

Natural

Natural

Mounting Options

Wall/floor

Wall/floor

Shell Material

Metal & ABS plastic

Metal & ABS plastic

Communication

CANbus

CAN,RS485

Monitoring Data

System voltage,current,temperature,SOC,SOH,cycle,cell’s voltage

Compliance Information



Certificate Options

IEC62619:2017,IEC62040, EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017,EN 61000-3-2:2014,  EN 61000-3-3:2013,  RoHS, UN38.3, MSDS

Solar Panel 390-415W
STC*
NOCT*
STC*
Thermal characteristics

Module type





YLxxxDF54e/2(xxx=Pmax)

Power output

Pmax

W

390

395

400

405

410

415

Power output tolerances

△Pmax

W

      0/+5

Module efficiency

ηm

%

19.97

20.23

20.48

20.74

21.00

21.25

Voltage at Pmax

Vmpp

V

30.27 30.42 30.56 30.71 30.86 31.00

Current at Pmax

Impp

A

12.89 12.99 13.09 13.19 13.29 13.39

Open-circuit voltage

Vac

V

36.80

36.90

37.00

37.10

37.20

37.30

Short-circuit voltage

Isc

A

13.68

13.77

13.86

13.95

14.04

14.13

*STC:1000W.m-2 irradiance,25℃ cell temperature,AM 1.5 spectrum according to EN 608904-3

Power output

ηm

%

296.85

300.63

304.34

308.17

312.03

315.80

Voltage at Pmax

Vmpp

V

28.87

29.01

29.01

29.14

29.43

29.56

Current at Pmax

Impp

A

10.28

10.36

10.44

10.52

10.60

10.68

Open- circuit voltage

Voc

V

34.98

35.08

35.17

35.27

35.36

35.46

Short- circuit voltage

Isc

A

11.02

11.09

11.17

11.24

11.31

11.38

*NOCT:open-circuit module operation temperature at 800W.m-2 irradiance,20℃ ambient temperature,1m*s-1 wind speed.

Power output

Pmax

%

426.86

432.33

437.80

443.27

448.75

454.22

Voltage at Pmax

Vmpp

V

30.27

30.42

30.56

30.71

30.86

31.00

Current at Pmax

Impp

A

14.10

14.21

14.33

14.43

14.54

14.65

Open- circuit voltage

Voc

V

36.80

36.90

37.00

37.10

37.20

37.30

Short- circuit voltage

Isc

A

14.97

15.07

15.17

15.27

15.37

15.47

*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2

Nominal operating cell temperature

  NOCT

C

39±2

Temperature coefficient of Pmax

γ

% / C

-0.35

Temperature coefficient of Voc

β

% / C

-0.28 0.05

*Bifaciality coefficient is 70% ±5%,rear irradiance is 135W.m-2

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485
