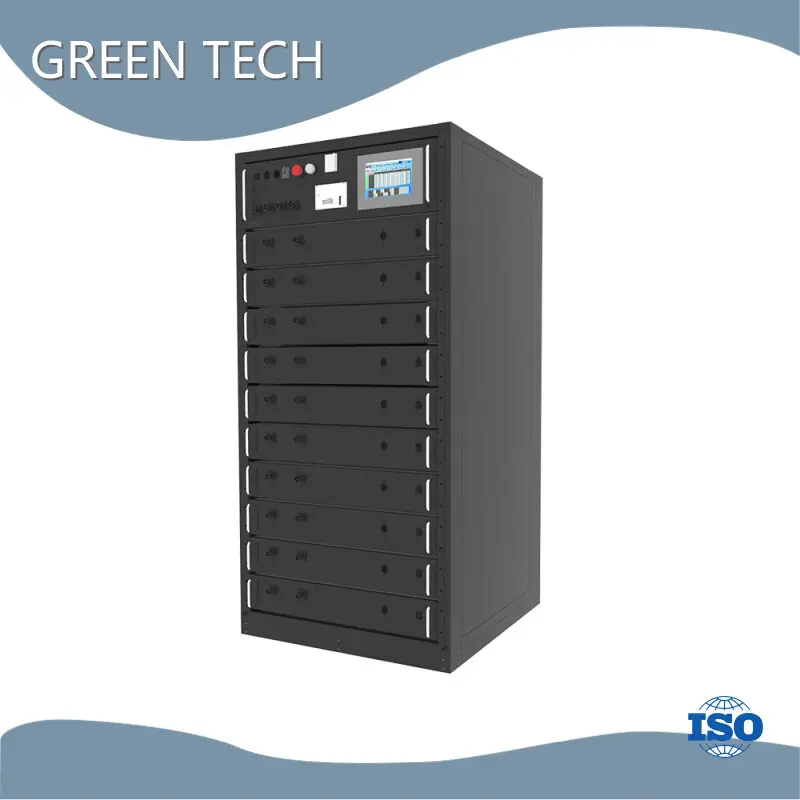

Standard Graphene Battery for Ev - 120A

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEF-512V50KW/100KWH-R
Energy storage	107.5kWh
Nominal Voltage	512Vd.c
Maximum Charge Voltage	576Vd.c
Discharge Cut-off Voltage	448Vd.c
ESR/AC @1KHz 50% SOC	<100mΩ
Max. Continuous Charge Current	120A
Max. Continuous Discharge Current	120A
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	10,000 times
Recommended Depth of Discharge	≤ 90%
Maximum Depth of Discharge	100%
Monitoring Data	System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage
Terminal	Large power energy storage terminals
Environmental Protection	IP20 Indoor
Shell Material	Metal
Parallel Connection	No limited ( add controller box )
communication	CAN, RS485, TCP

Weight	1315kg
Dimensions(WxDxH)	801x832x1629(mm)
Mount Options	On floor

Certificate Options

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Company Advantages

· The offered graphene battery for ev is designed by a dedicated team of experts.

· The product has passed strict quality testing in each procedure under the quality management system.

· This product has been improved by our personnel who have thorough knowledge and experience in their related field.

Company Features

· specializes in the production of a variety of graphene battery for ev.

· With a powerful technical strength and its advanced specialized devices, is competent for all kinds of graphene battery for ev.

· constantly walks on the path to excellence in graphene battery for ev. Get quote!

Application of the Product

graphene battery for ev can be used in multiple industries.

insists on providing customers with one-stop and complete solution from the customer's perspective.
