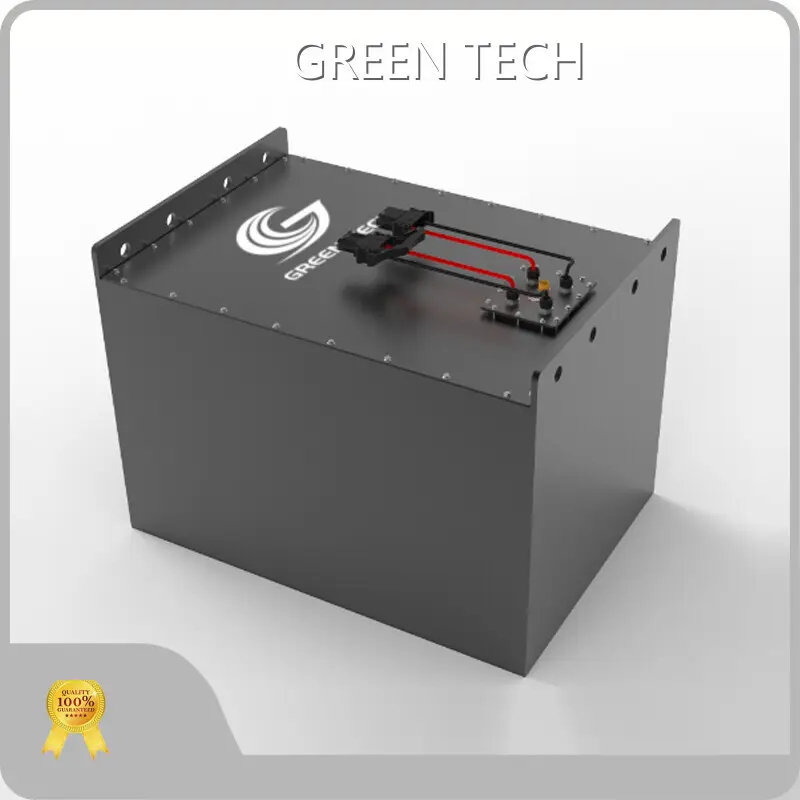

Wholesale Energy Storage Systems Brand

Series:

EM Series

Part Number:

GTEM-72V18720-F

Max. Continuous Charge Current:

150A

Discharge Cut-off Voltage:

56Vdc

Dimensions(WxDxH):

740x540x320mm

Inquiry

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-72V18720-F
Energy storage	18.72kWh
Nominal Voltage	72Vdc
Maximum Charge Voltage	84Vdc
Discharge Cut-off Voltage	56Vdc
ESR/AC @1KHz 50% SOC	<50mΩ
Max. Continuous Charge Current	150A
Max. Continuous Discharge Current	150A
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Charge Temperature	0℃~+55℃
Discharge Temperature	-20℃~+60℃
Cooling Method	Natural
Shell Material	Metal & ABS plastic
Parallel Connection	Recommend within 10sets
Monitoring Data	SOC,voltage, module

Weight	230kg
Dimensions(WxDxH)	740x540x320(mm)
Mount Options	Wall / floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· energy storage systems is inspected right from raw materials selection to the final production.

· energy storage systems have strong competitive advantages in terms of technology and quality.

· The product has received much attention since its launch and is believed to be more successful in the future market.

Company Features

· Over the years, primarily focusing on the manufacturing of energy storage systems, has evolved to take a leading position in this industry in China.

· With years of technical experience in the energy storage systems industry and customer service awareness, we have won more trust from customers all over the world. Compared to previous years, we have established more business cooperations with clients.

· The tight network of sales and service training stations of makes it easier to provide customers with more convenient services. Welcome to visit our factory!

Application of the Product

The energy storage systems produced by is very popular in the market and is widely used in industry.

insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
