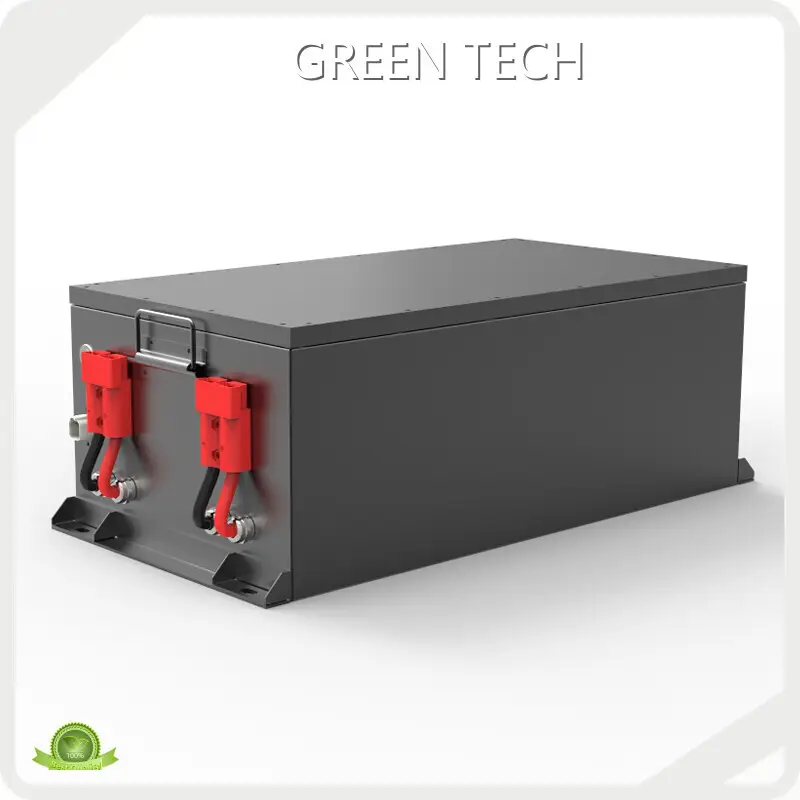

WorldwideGraphene Battery GTEM-48V4500-G Company

Product Parameters

General Characteristics

Mechanical Specifications

Part Number	GTEM-48V4500-G
Energy storage	4.5kWh
Nominal Voltage	48Vdc
Nominal Capacity	130Ah
Maximum Charge Voltage	58.8Vdc
Discharge Cut-off Voltage	40Vdc
ESR/AC @1KHz 50% SOC	<30mΩ
Max. Continuous Charge Current	200A
Max. Continuous Discharge Current	200A
Absolute Peak Current 3s	400A
Discharge Temperature	-20℃~+60℃
Charge Temperature	0℃~+55℃
Cooling Method	Natural cooling
Operating Humidity	0~90% RH Non-condensing
Cells Self-discharge Rate	2% per month
Projected Cycle Life ( 25℃)	20,000 times
Recommended Depth of Discharge	≤90%
Maximum Depth of Discharge	100%
Shell Material	Metal & ABS plastic
Monitoring Data	Module voltage,SOC
Indicator light display	Capacity %
Environmental Protection	IP65
Storage Conditions	-20℃~+40℃ 25% ~ 95%RH SOC>30%，one full charge needed per two months

Weight	55kg
Dimensions(WxDxH)	720x355x252(mm)
Mount Options	On floor

Certificate&Compatible Protocol

Compatible Protocol: CAN, RS485

1 (10)

2 (9)

3 (7)

4 (7)

5 (8)

6 (11)

7 (6)

Download

GTEM-48V 7.4KWh Capess Datasheet

Company Advantages

· The raw materials of Graphene battery are procured from some of the most trustworthy and certified vendors in the industry.

· The product is given superior quality that surpasses the industrial standard.

· has enough ability to produce qualified Graphene battery with high quality.

Company Features

· is a manufacturer and distributor, which focuses on Graphene battery.

· listens to the needs of customers, and our Graphene battery are assured to meet the highest quality standards in order to become a trusted top provider.

· thinks in new ways to provide solutions that improve customers’ business. Get price!

Application of the Product

Our Graphene battery can be used in multiple areas of multiple industries.

is able to meet customers' needs to the greatest extent by providing customers with one-stop and high-quality solutions.
